FAG 605-2Z-CO7-C3

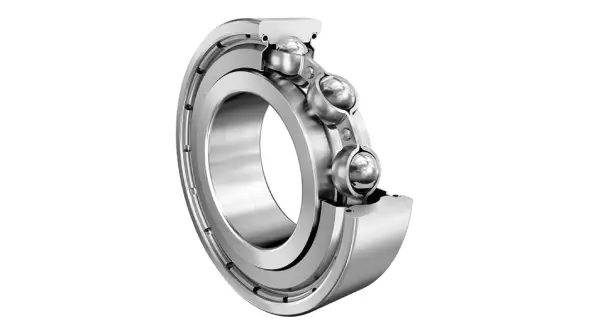

Deep groove ball bearing 60..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

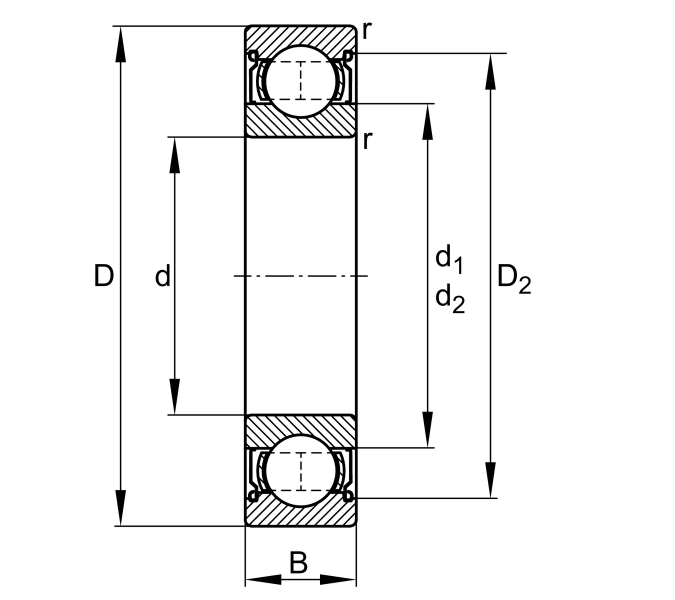

Main Dimensions & Performance Data
d
5 mm
Bore diameter
D
14 mm
Outside diameter
B
5 mm
Width
Cr
1,310 N
Basic dynamic load rating, radial
C0r
490 N
Basic static load rating, radial
Cur
30.5 N
Fatigue load limit, radial
CG
60,000 1/min
Limiting speed
nϑr
50,000 1/min
Reference speed
≈m
0.003 kg
Weight

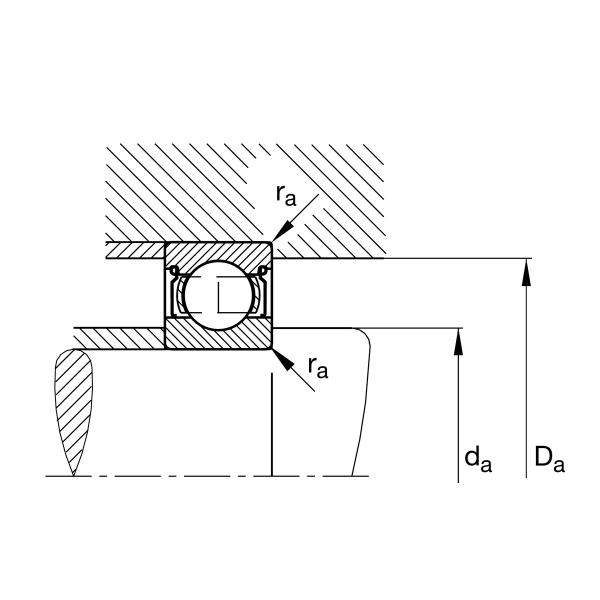

Mounting dimensions
da min
6.4 mm
Minimum diameter shaft shoulder
da min
12.6 mm
Maximum diameter of housing shoulder
ra max
0.2 mm
Maximum fillet radius
