FAG 607-CO7

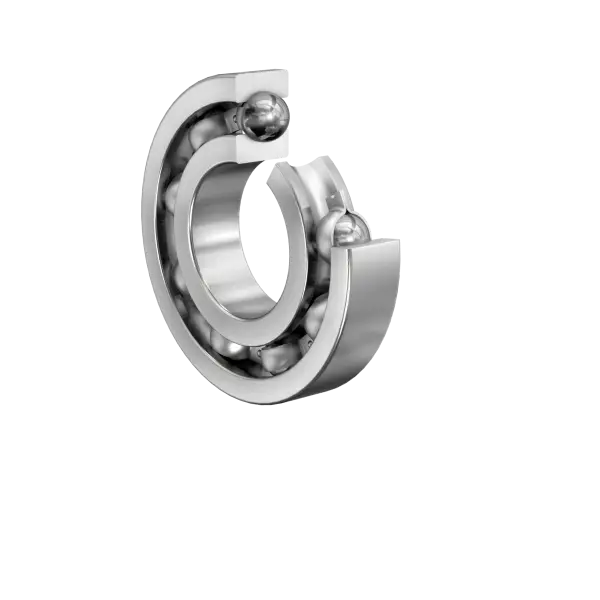

Deep groove ball bearing 60, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

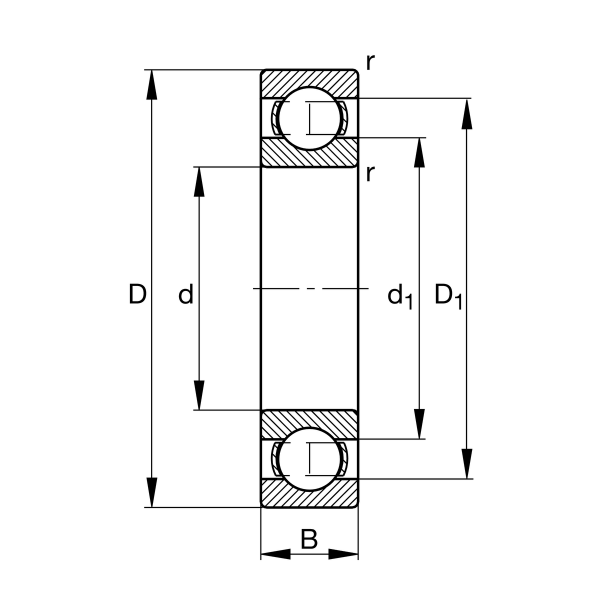

Main Dimensions & Performance Data
d
7 mm
Bore diameter
D
19 mm
Outside diameter
B
6 mm
Width
Cr
2,610 N
Basic dynamic load rating, radial
C0r
1,050 N
Basic static load rating, radial
Cur
65 N
Fatigue load limit, radial
CG
53,000 1/min
Limiting speed
nϑr
34,500 1/min
Reference speed
≈m
0.007 kg
Weight

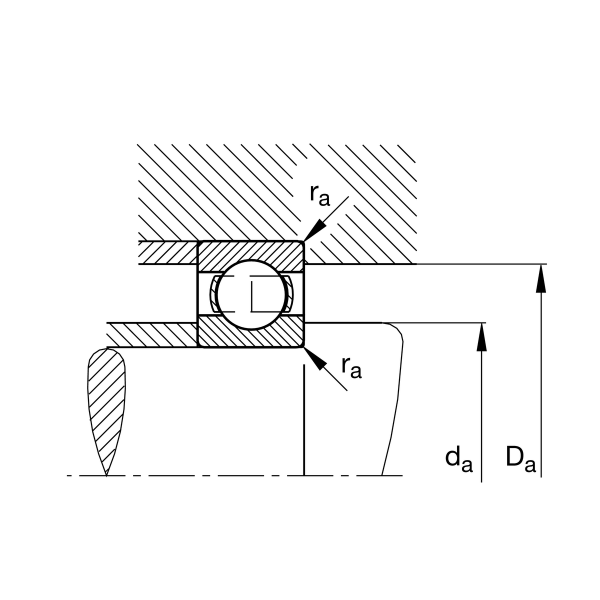

Mounting dimensions
da min
9 mm
Minimum diameter shaft shoulder
da min
17 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
