FAG 61801-2Z-CO7-C3

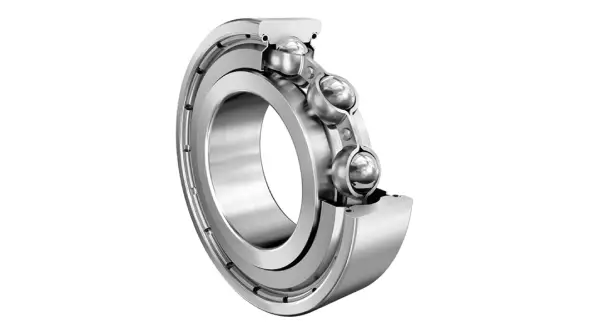

Deep groove ball bearing 618..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

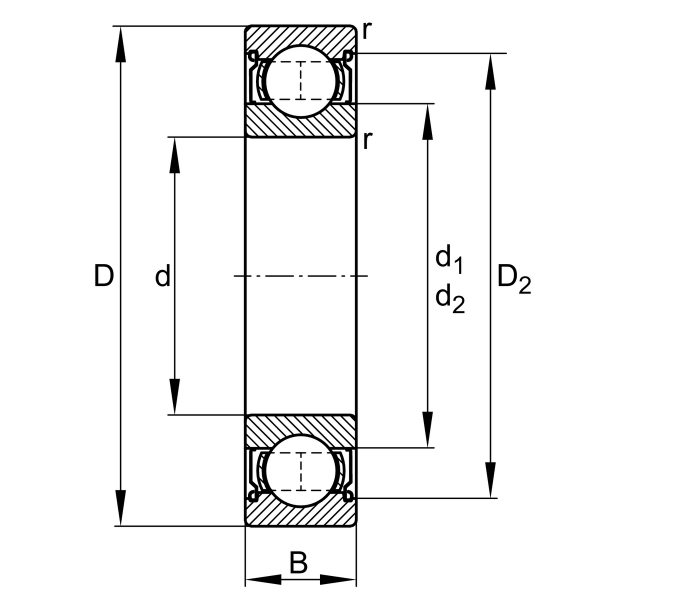

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
21 mm
Outside diameter
B
5 mm
Width
Cr
1,910 N
Basic dynamic load rating, radial
C0r
1,040 N
Basic static load rating, radial
Cur
47 N
Fatigue load limit, radial
CG
42,500 1/min
Limiting speed
nϑr
23,500 1/min
Reference speed
≈m
0.005 kg
Weight

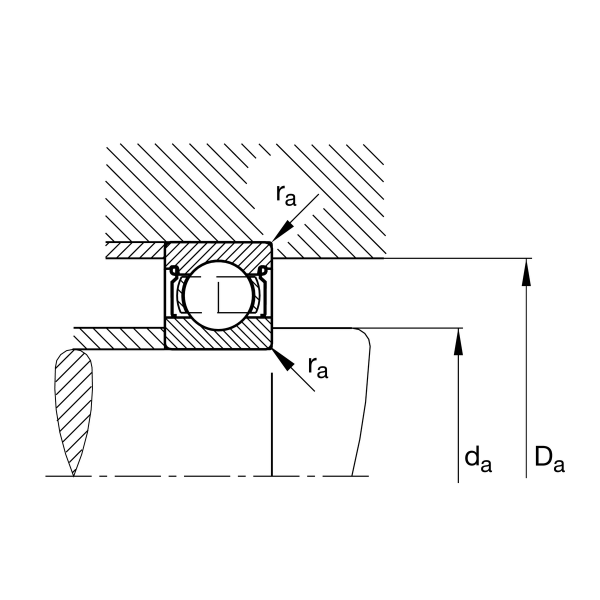

Mounting dimensions
da min
14 mm
Minimum diameter shaft shoulder
da min
19 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
