FAG 61805-2Z-CO7

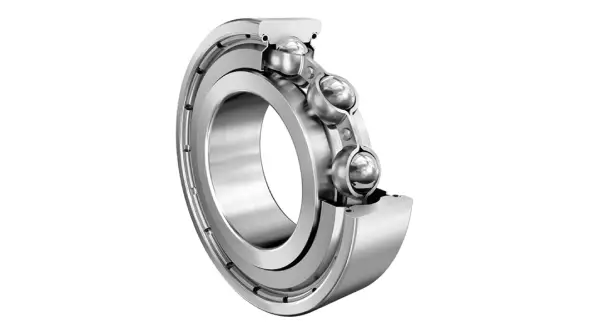

Deep groove ball bearing 618..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

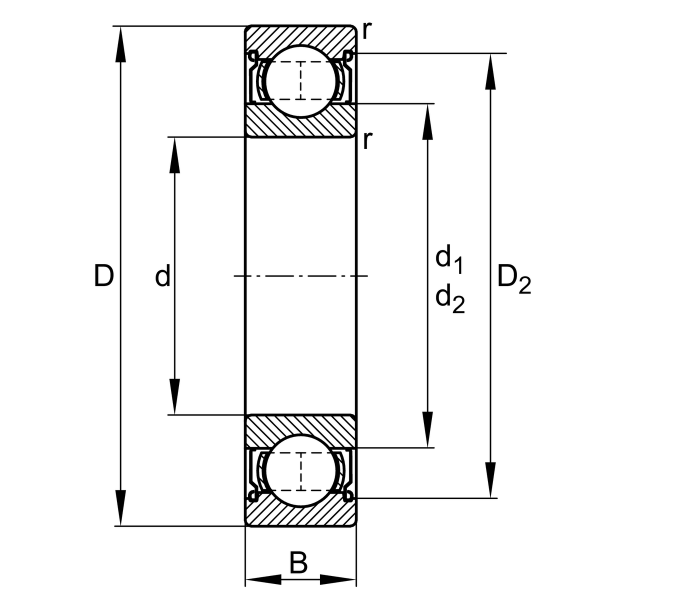

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
37 mm
Outside diameter
B
7 mm
Width
Cr
4,280 N
Basic dynamic load rating, radial
C0r
2,940 N
Basic static load rating, radial
Cur
134 N
Fatigue load limit, radial
CG
23,600 1/min
Limiting speed
nϑr
13,400 1/min
Reference speed
≈m
0.022 kg
Weight

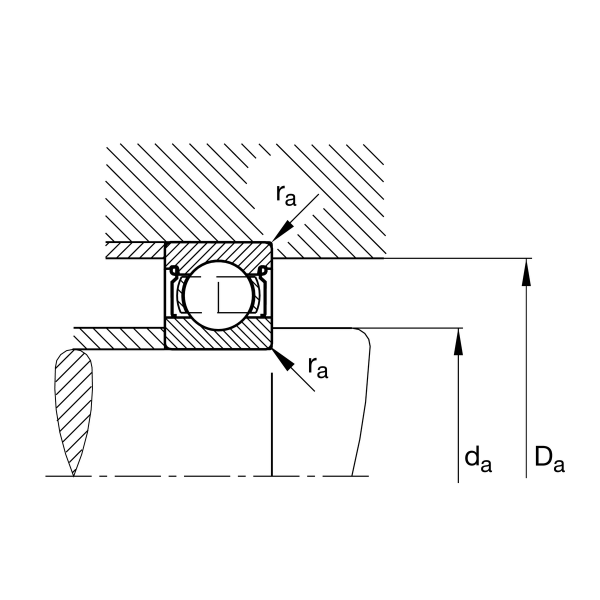

Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
35 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
