FAG 61906-2RSR-HLN-C3

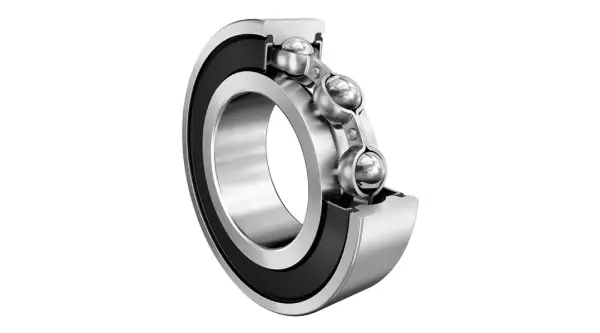

Deep groove ball bearing 619..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
47 mm
Outside diameter
B
9 mm
Width
Cr
7,240 N
Basic dynamic load rating, radial
C0r
5,010 N
Basic static load rating, radial
Cur
320 N
Fatigue load limit, radial
CG
7,600 1/min
Limiting speed
≈m
0.046 kg
Weight
Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
45 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
