FAG 61906-2Z-CO7-C3

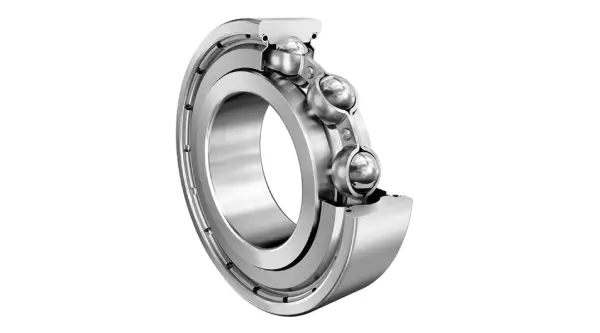

Deep groove ball bearing 619..-2Z, single row, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
47 mm
Outside diameter
B
9 mm
Width
Cr
7,240 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
228 N
Fatigue load limit, radial
CG
12,000 1/min
Limiting speed
nϑr
11,900 1/min
Reference speed
≈m
0.048 kg
Weight

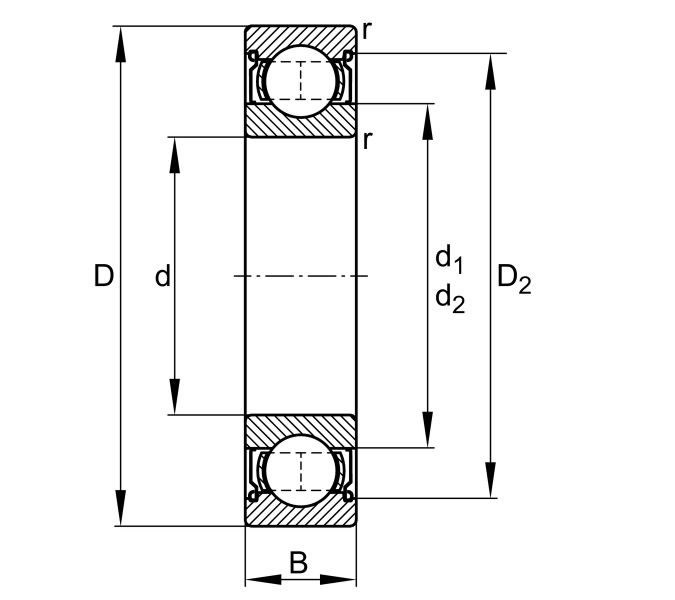

Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
45 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
