FAG 6205-C-2Z-L207-C3>V
Deep Groove Ball Bearings

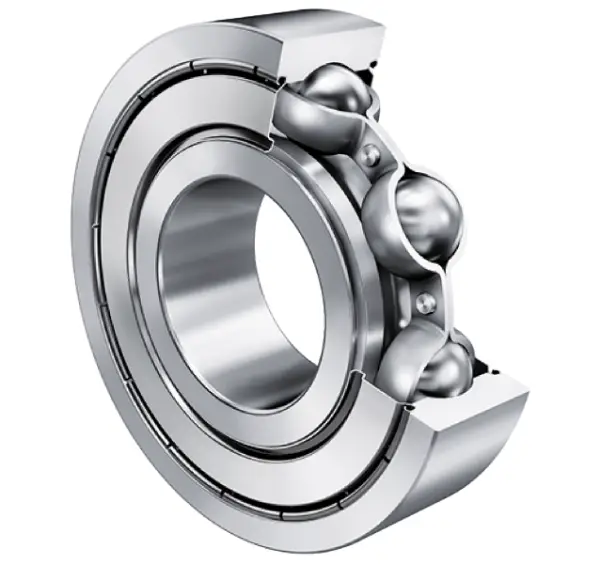

Deep groove ball bearing 62..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

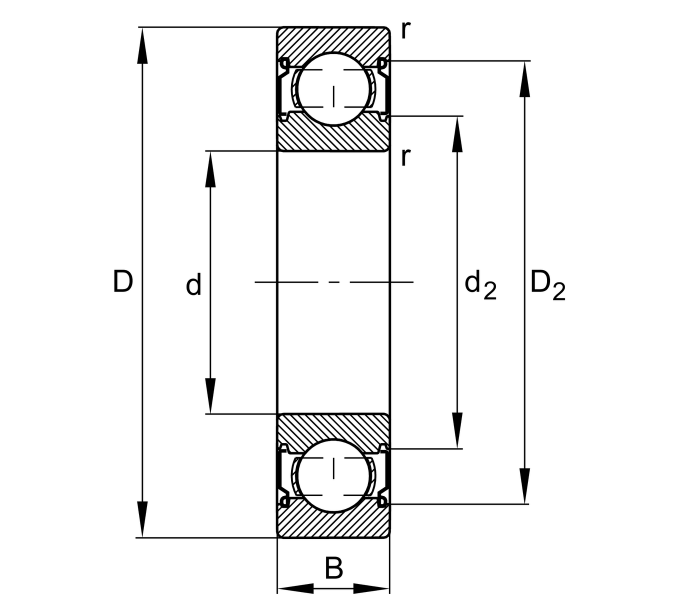

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
15,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
530 N
Fatigue load limit, radial
CG
18,400 1/min
Limiting speed
nϑr
16,000 1/min
Reference speed
≈m
0.125 kg
Weight

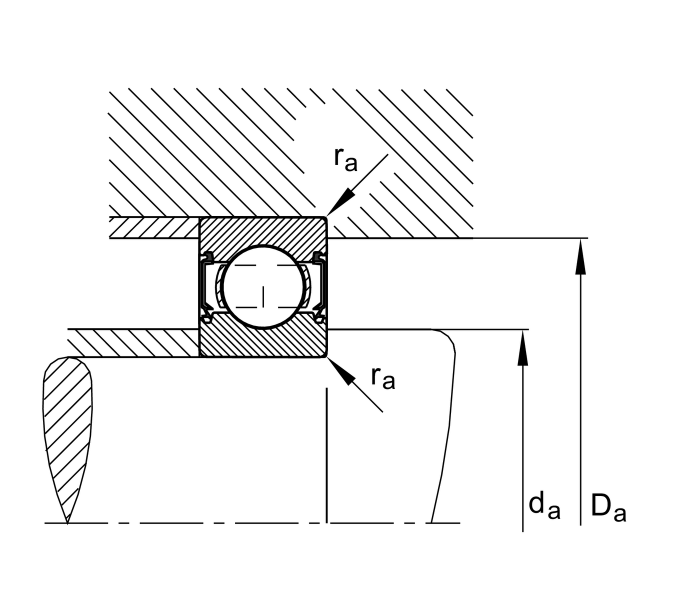

Mounting dimensions
da min
30.6 mm
Minimum diameter shaft shoulder
da min
46.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
