FAG 6338-M-J20AA-C3
Deep Groove Ball Bearings

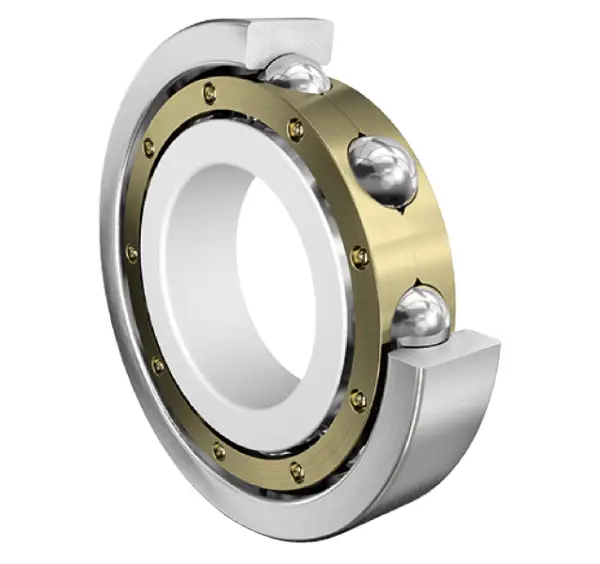

Deep groove ball bearing 63..-M-J20AA, single row, solid brass cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
190 mm
Bore diameter
D
400 mm
Outside diameter
B
78 mm
Width
Cr
380,000 N
Basic dynamic load rating, radial
C0r
455,000 N
Basic static load rating, radial
Cur
18,700 N
Fatigue load limit, radial
CG
2,850 1/min
Limiting speed
nϑr
2,290 1/min
Reference speed
≈m
48.8 kg
Weight
Mounting dimensions
da min
210 mm
Minimum diameter shaft shoulder
da min
380 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
