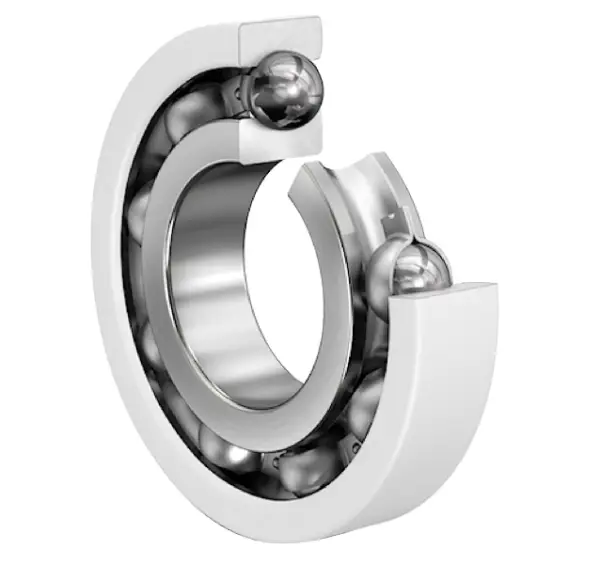

FAG 6213-J20AB-C3
Deep groove ball bearing 62..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

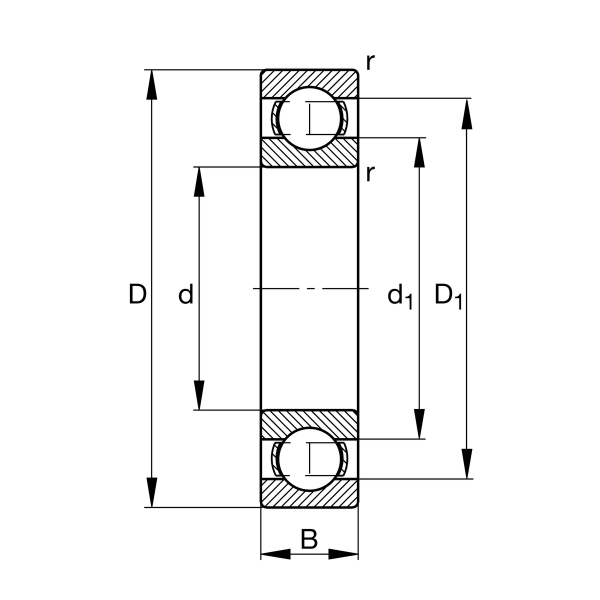

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
120 mm
Outside diameter
B
23 mm
Width
Cr
63,000 N
Basic dynamic load rating, radial
C0r
41,500 N
Basic static load rating, radial
Cur
2,850 N
Fatigue load limit, radial
CG
8,600 1/min
Limiting speed
nϑr
6,300 1/min
Reference speed
≈m
0.979 kg
Weight
Mounting dimensions
da min
74 mm
Minimum diameter shaft shoulder
da min
111 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
