FAG 6214-J20AB-C4

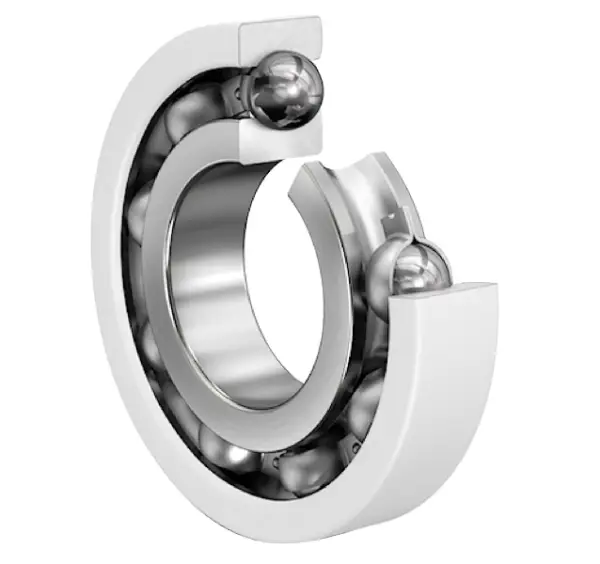

Deep groove ball bearing 62..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
24 mm
Width
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,000 N
Basic static load rating, radial
Cur
3,000 N
Fatigue load limit, radial
CG
8,200 1/min
Limiting speed
nϑr
6,100 1/min
Reference speed
≈m
1.061 kg
Weight
Mounting dimensions
da min
79 mm
Minimum diameter shaft shoulder
da min
116 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
