FAG 6216-J20AB-C3

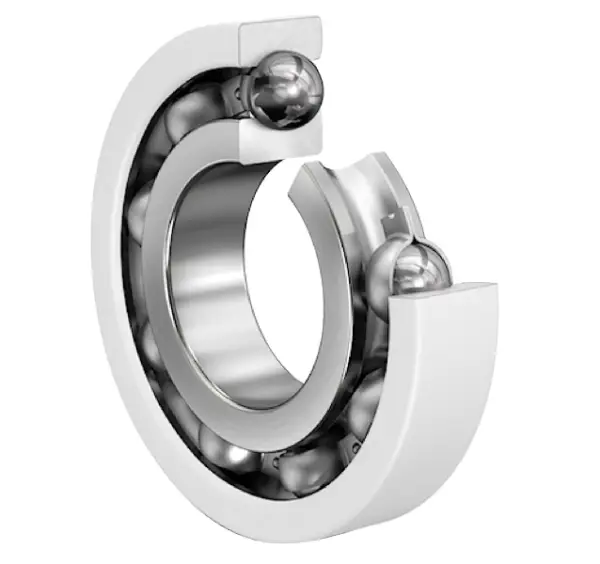

Deep groove ball bearing 62..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
26 mm
Width
Cr
77,000 N
Basic dynamic load rating, radial
C0r
55,000 N
Basic static load rating, radial
Cur
3,650 N
Fatigue load limit, radial
CG
7,300 1/min
Limiting speed
nϑr
5,500 1/min
Reference speed
≈m
1.44 kg
Weight
Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
da min
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
