FAG 6217-J20AA-C3

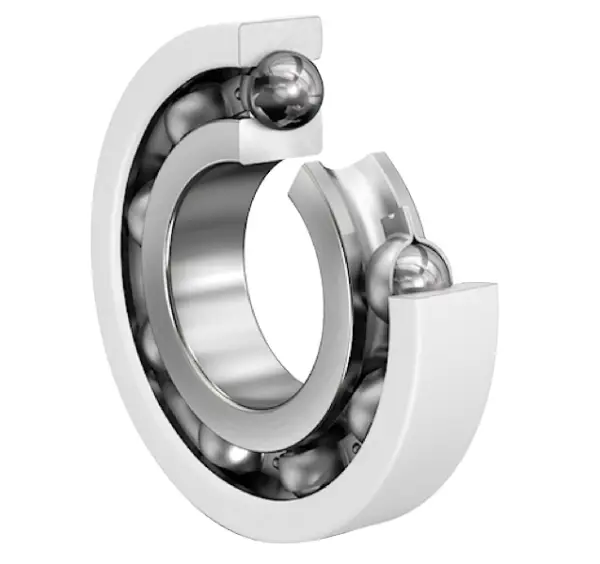

Deep groove ball bearing 62..-J20AA, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
150 mm
Outside diameter
B
28 mm
Width
Cr
89,000 N
Basic dynamic load rating, radial
C0r
64,000 N
Basic static load rating, radial
Cur
4,050 N
Fatigue load limit, radial
CG
6,700 1/min
Limiting speed
nϑr
5,300 1/min
Reference speed
≈m
1.801 kg
Weight
Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da min
139 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
