FAG 6222-J20AA-C3

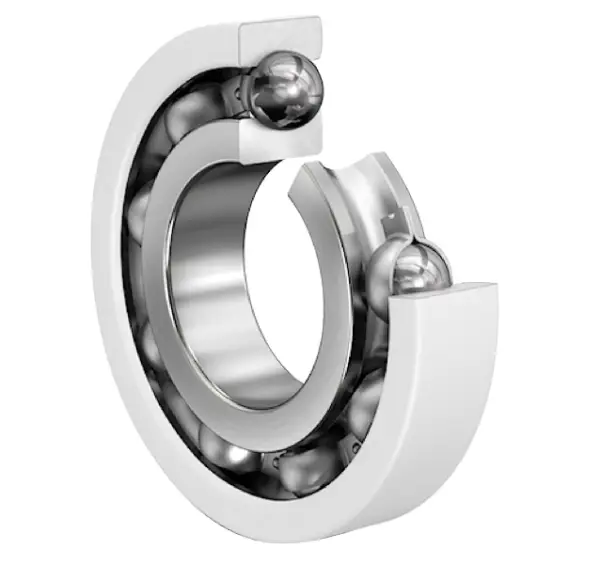

Deep groove ball bearing 62..-J20AA, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

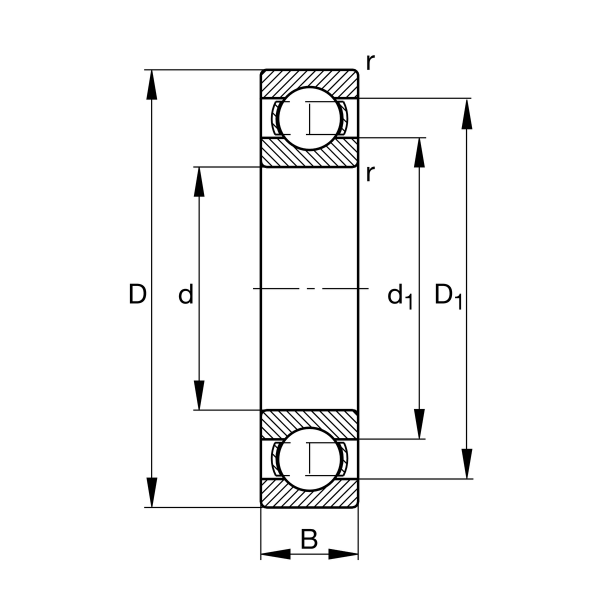

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
200 mm
Outside diameter
B
38 mm
Width
Cr
153,000 N
Basic dynamic load rating, radial
C0r
117,000 N
Basic static load rating, radial
Cur
6,500 N
Fatigue load limit, radial
CG
4,450 1/min
Limiting speed
nϑr
4,500 1/min
Reference speed
≈m
4.69 kg
Weight
Mounting dimensions
da min
122 mm
Minimum diameter shaft shoulder
da min
188 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius
