FAG 6224-J20AA-C3
Deep Groove Ball Bearings

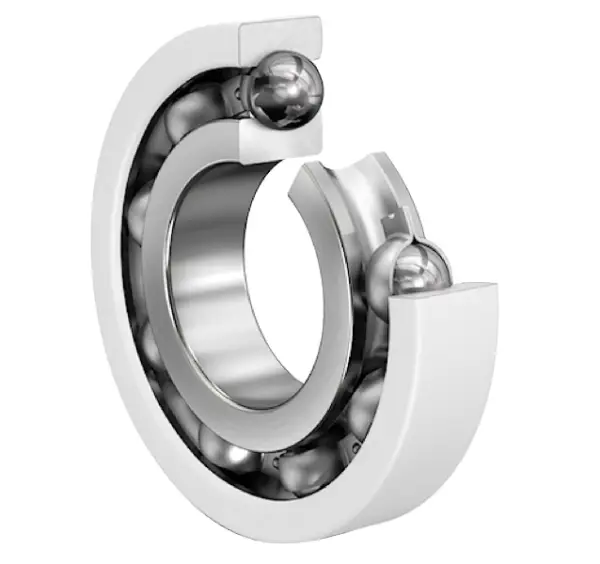

Deep groove ball bearing 62..-J20AA, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

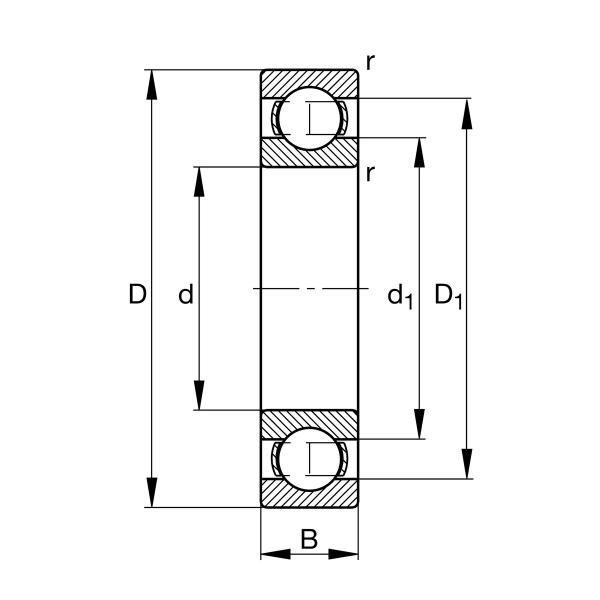

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
40 mm
Width
Cr
154,000 N
Basic dynamic load rating, radial
C0r
123,000 N
Basic static load rating, radial
Cur
6,400 N
Fatigue load limit, radial
CG
4,200 1/min
Limiting speed
nϑr
4,250 1/min
Reference speed
≈m
5.52 kg
Weight

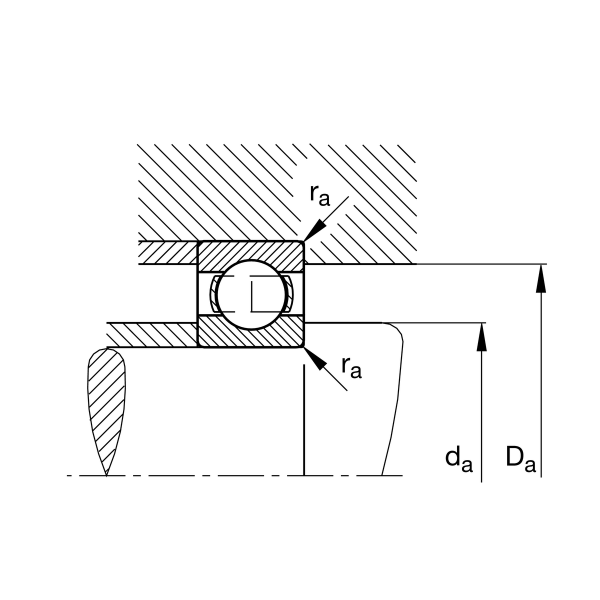

Mounting dimensions
da min
132 mm
Minimum diameter shaft shoulder
da min
203 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius
