FAG 6228-J20AB-C3
Deep Groove Ball Bearings

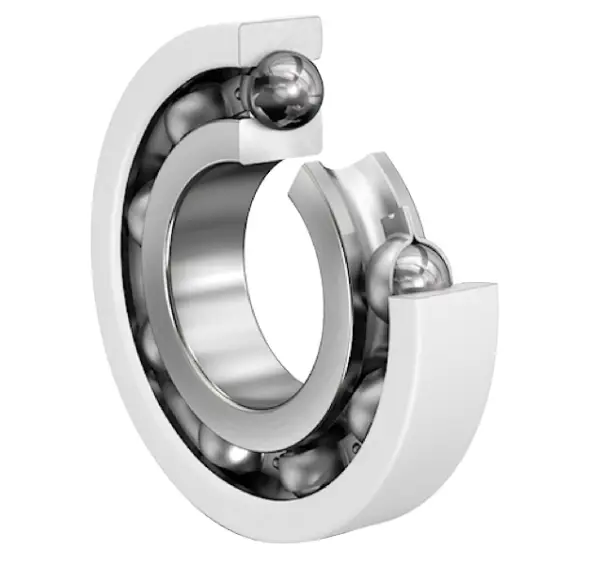

Deep groove ball bearing 62..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
250 mm
Outside diameter
B
42 mm
Width
Cr
188,000 N
Basic dynamic load rating, radial
C0r
165,000 N
Basic static load rating, radial
Cur
8,400 N
Fatigue load limit, radial
CG
3,600 1/min
Limiting speed
nϑr
3,600 1/min
Reference speed
≈m
8 kg
Weight
Mounting dimensions
da min
154 mm
Minimum diameter shaft shoulder
da min
236 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
