FAG 6232-M-J20C-C4
Deep Groove Ball Bearings

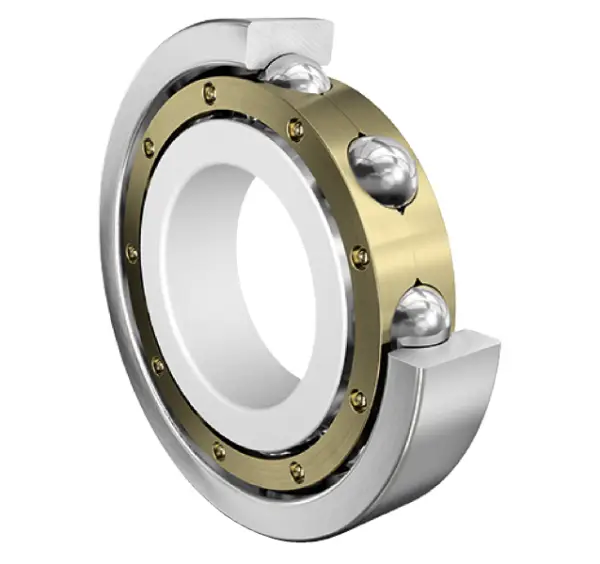

Deep groove ball bearing 62..-M-J20C, single row, solid brass cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
290 mm
Outside diameter
B
48 mm
Width
Cr
212,000 N
Basic dynamic load rating, radial
C0r
203,000 N
Basic static load rating, radial
Cur
9,100 N
Fatigue load limit, radial
CG
4,050 1/min
Limiting speed
nϑr
3,100 1/min
Reference speed
≈m
14.5 kg
Weight
Mounting dimensions
da min
174 mm
Minimum diameter shaft shoulder
da min
276 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
