FAG 6268-M

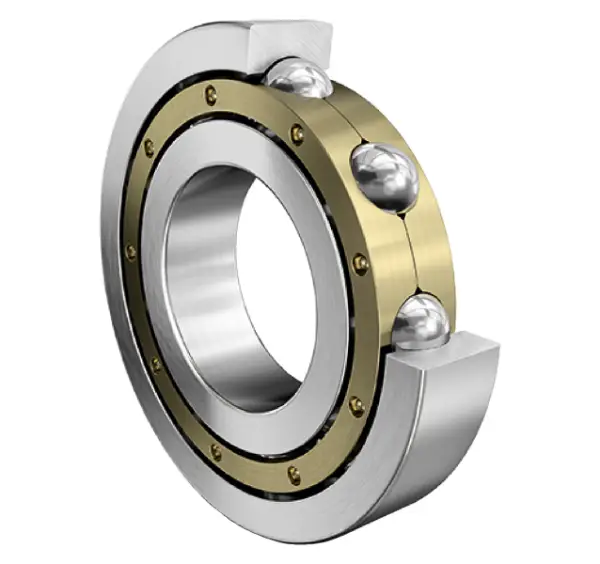

Deep groove ball bearing 62..-M, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
340 mm
Bore diameter
D
620 mm
Outside diameter
B
92 mm
Width
Cr
550,000 N
Basic dynamic load rating, radial
C0r
890,000 N
Basic static load rating, radial
Cur
27,000 N
Fatigue load limit, radial
CG
1,790 1/min
Limiting speed
nϑr
1,270 1/min
Reference speed
≈m
118 kg
Weight
Mounting dimensions
da min
366 mm
Minimum diameter shaft shoulder
da min
594 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum fillet radius
