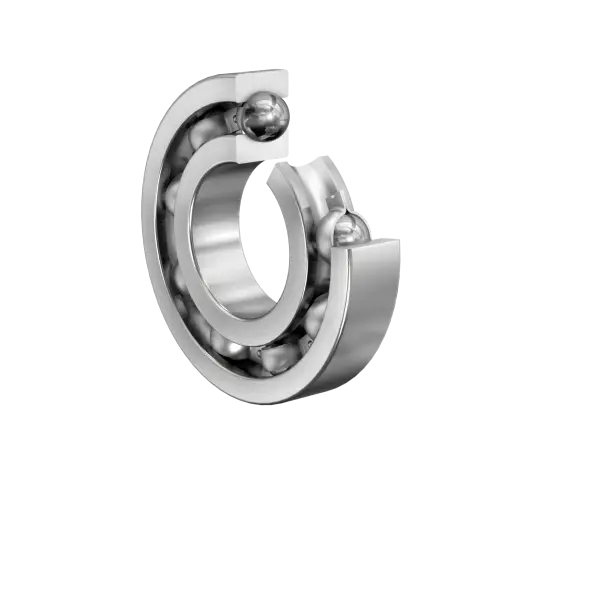

FAG 6300-B
Deep groove ball bearing 63, single row, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

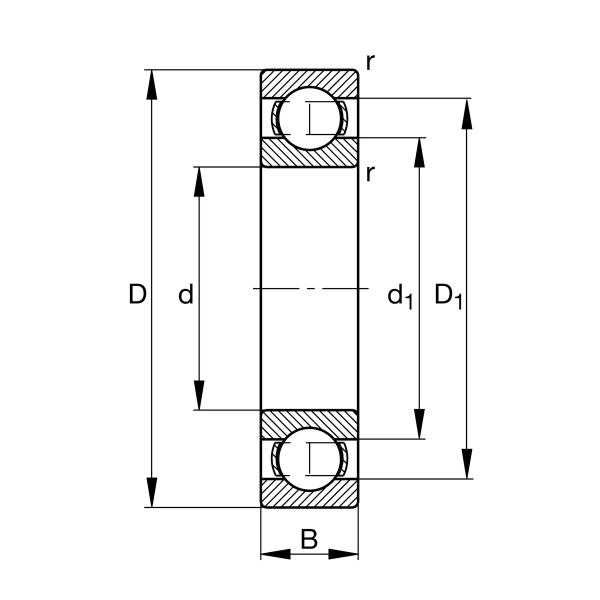

Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
35 mm
Outside diameter
B
11 mm
Width
Cr
8,600 N
Basic dynamic load rating, radial
C0r
3,450 N
Basic static load rating, radial
Cur
315 N
Fatigue load limit, radial
CG
31,000 1/min
Limiting speed
nϑr
21,100 1/min
Reference speed
≈m
53.3 g
Weight
Mounting dimensions
da min
14.2 mm
Minimum diameter shaft shoulder
da min
30.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
