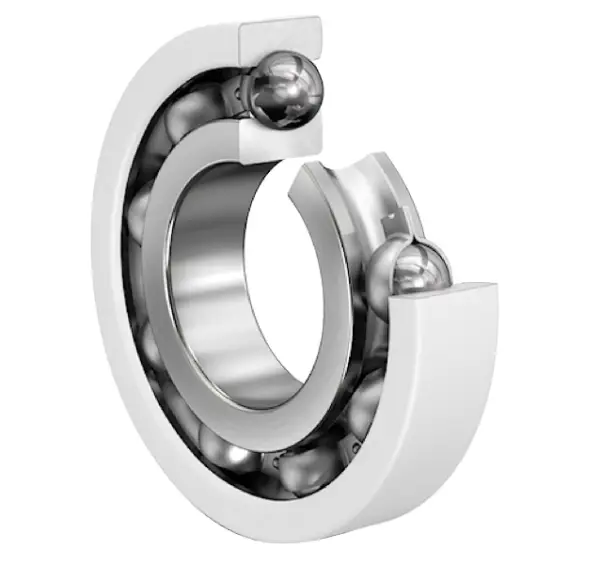

FAG 6310-J20AA-C3
Deep groove ball bearing 63..-J20AA, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

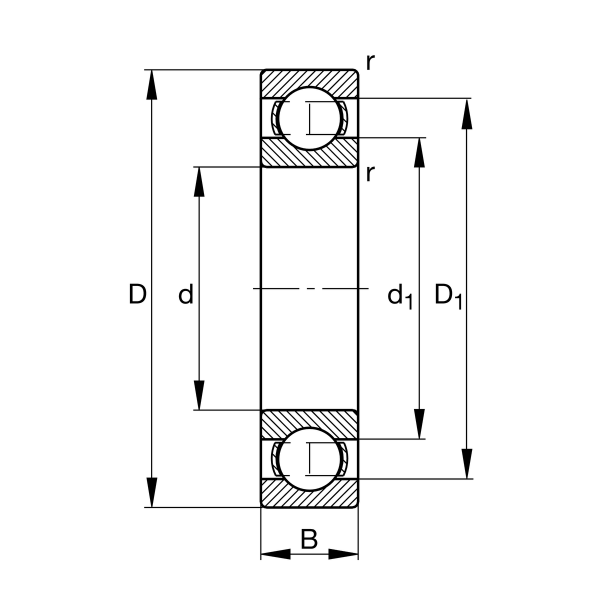

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
27 mm
Width
Cr
68,000 N
Basic dynamic load rating, radial
C0r
38,500 N
Basic static load rating, radial
Cur
2,650 N
Fatigue load limit, radial
CG
9,500 1/min
Limiting speed
nϑr
7,700 1/min
Reference speed
≈m
1.09 kg
Weight
Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
da min
99 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
