FAG 6313-J20AB-C3

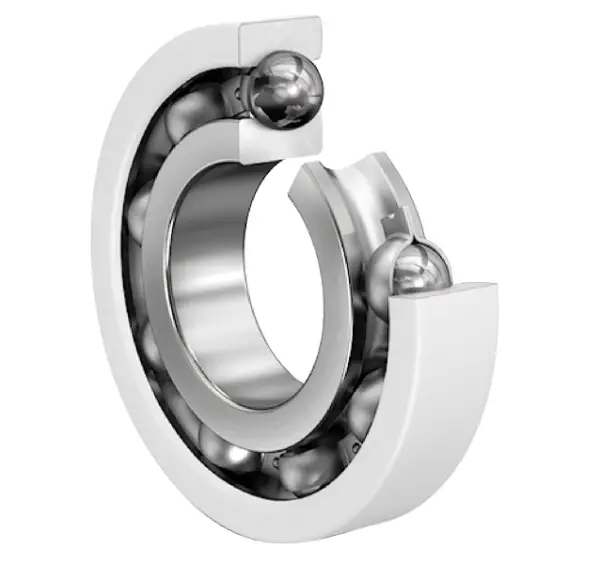

Deep groove ball bearing 63..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
140 mm
Outside diameter
B
33 mm
Width
Cr
100,000 N
Basic dynamic load rating, radial
C0r
60,000 N
Basic static load rating, radial
Cur
4,050 N
Fatigue load limit, radial
CG
7,300 1/min
Limiting speed
nϑr
6,400 1/min
Reference speed
≈m
2.14 kg
Weight
Mounting dimensions
da min
77 mm
Minimum diameter shaft shoulder
da min
128 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius
