FAG 6319-J20AB-C3

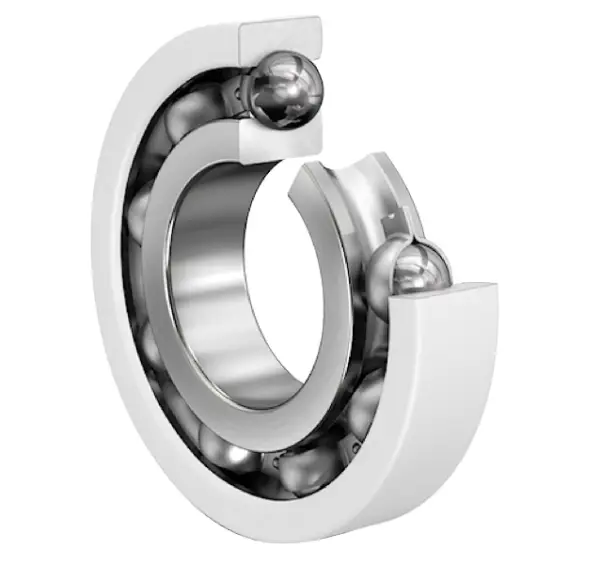

Deep groove ball bearing 63..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
45 mm
Width
Cr
154,000 N
Basic dynamic load rating, radial
C0r
113,000 N
Basic static load rating, radial
Cur
6,600 N
Fatigue load limit, radial
CG
4,600 1/min
Limiting speed
nϑr
4,950 1/min
Reference speed
≈m
5.82 kg
Weight
Mounting dimensions
da min
109 mm
Minimum diameter shaft shoulder
da min
186 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
