FAG 6320-M-J20AA

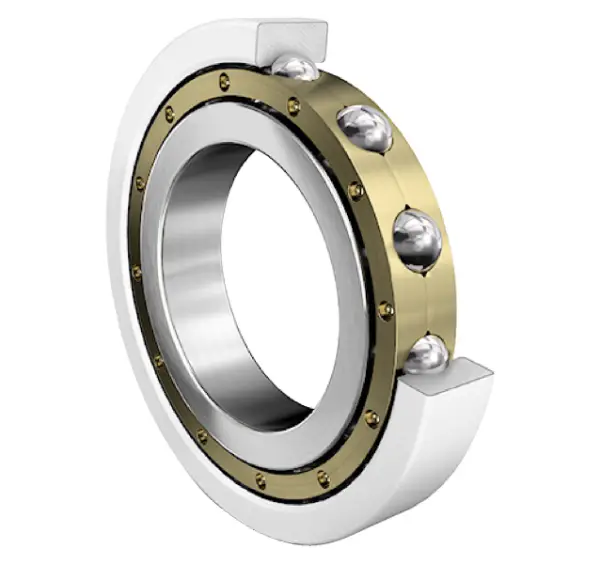

Deep groove ball bearing 63..-M-J20AA, single row, solid brass cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock

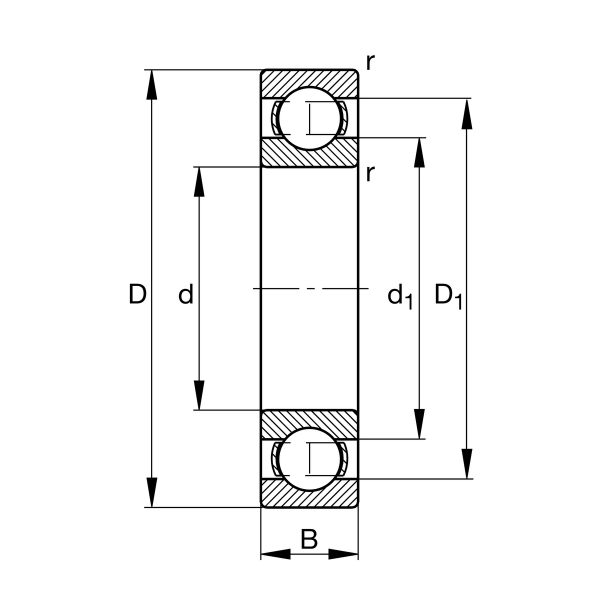

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
215 mm
Outside diameter
B
47 mm
Width
Cr
177,000 N
Basic dynamic load rating, radial
C0r
137,000 N
Basic static load rating, radial
Cur
7,400 N
Fatigue load limit, radial
CG
5,500 1/min
Limiting speed
nϑr
4,600 1/min
Reference speed
≈m
8.642 kg
Weight

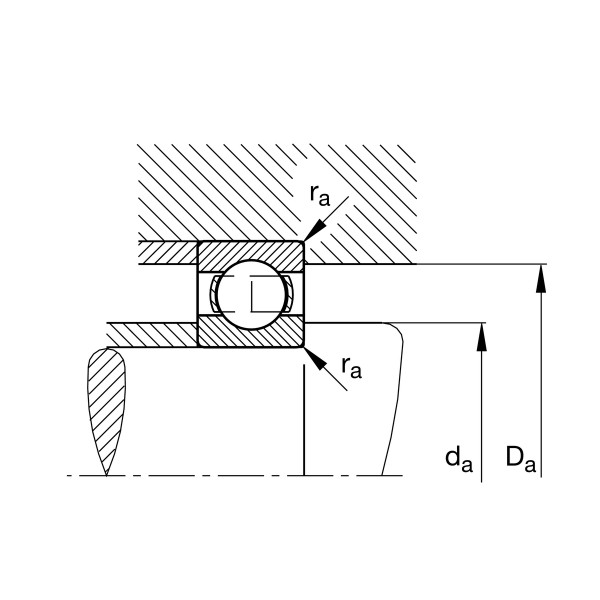

Mounting dimensions
da min
114 mm
Minimum diameter shaft shoulder
da min
201 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
