FAG 6324-M-J20AA-C4
Deep Groove Ball Bearings

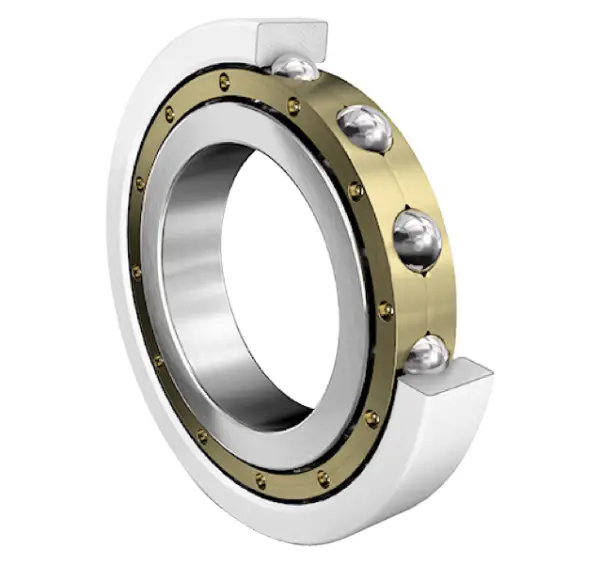

Deep groove ball bearing 63..-M-J20AA, single row, solid brass cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

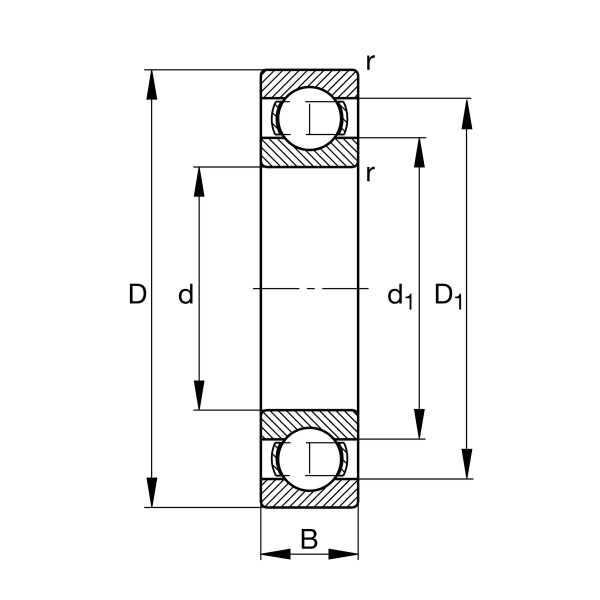

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
260 mm
Outside diameter
B
55 mm
Width
Cr
225,000 N
Basic dynamic load rating, radial
C0r
195,000 N
Basic static load rating, radial
Cur
9,800 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
3,800 1/min
Reference speed
≈m
14.3 kg
Weight

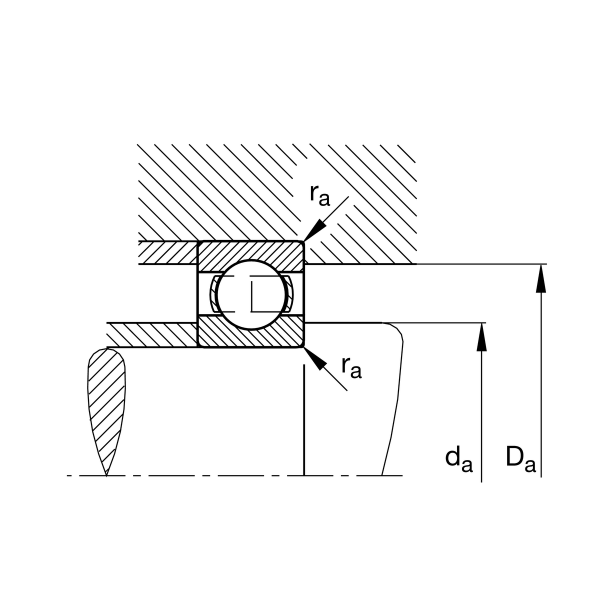

Mounting dimensions
da min
134 mm
Minimum diameter shaft shoulder
da min
246 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
