FAG 6326-J20AA-C3
Deep Groove Ball Bearings

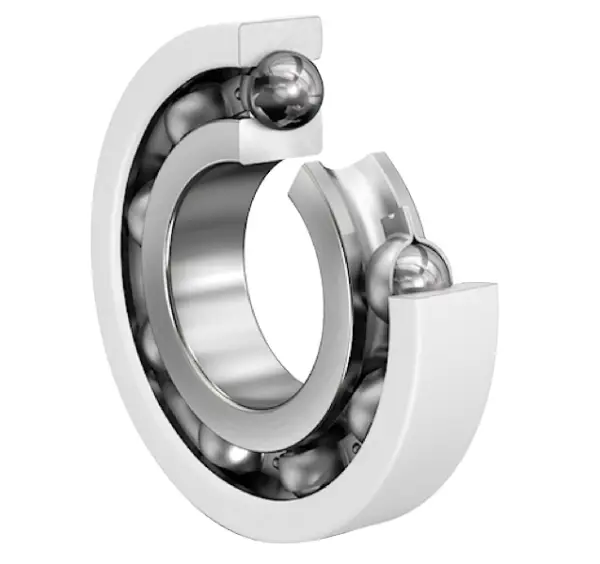

Deep groove ball bearing 63..-J20AA, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
B
58 mm
Width
Cr
244,000 N
Basic dynamic load rating, radial
C0r
214,000 N
Basic static load rating, radial
Cur
10,100 N
Fatigue load limit, radial
CG
3,200 1/min
Limiting speed
nϑr
3,500 1/min
Reference speed
≈m
14.81 kg
Weight
Mounting dimensions
da min
147 mm
Minimum diameter shaft shoulder
da min
263 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
