FAG 6332-G

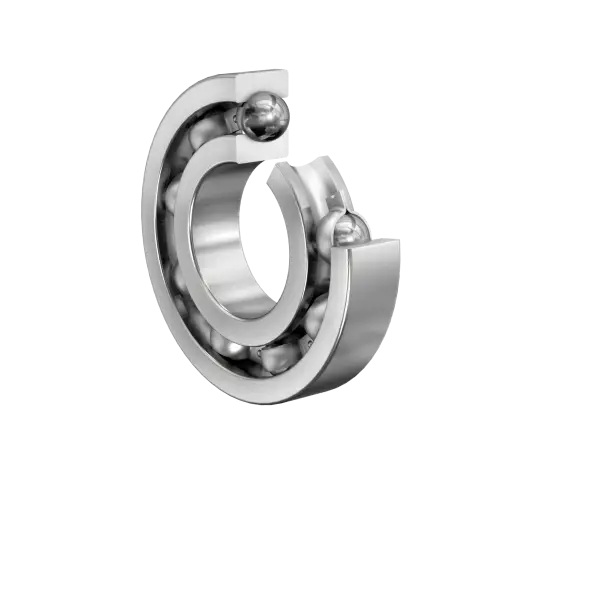

Deep groove ball bearing 63..-G, single row, generator bearing, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

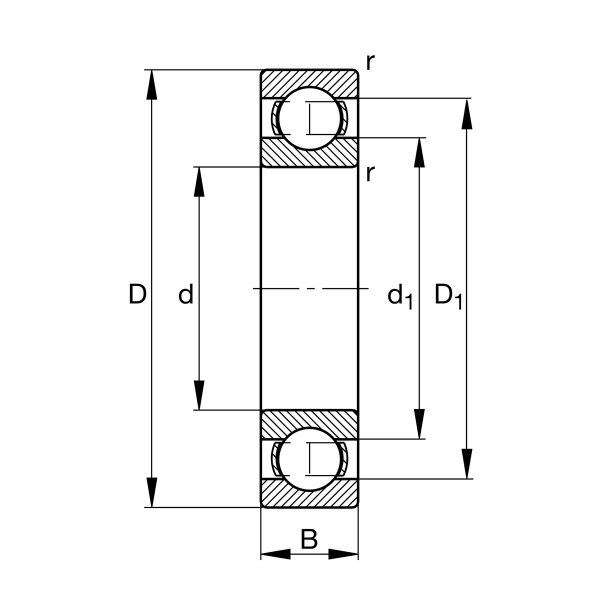

Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
340 mm
Outside diameter
B
68 mm
Width
Cr
330,000 N
Basic dynamic load rating, radial
C0r
405,000 N
Basic static load rating, radial
Cur
13,300 N
Fatigue load limit, radial
CG
2,650 1/min
Limiting speed
nϑr
2,700 1/min
Reference speed
≈m
27 kg
Weight
Mounting dimensions
da min
177 mm
Minimum diameter shaft shoulder
da min
323 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
