FAG 6336-G

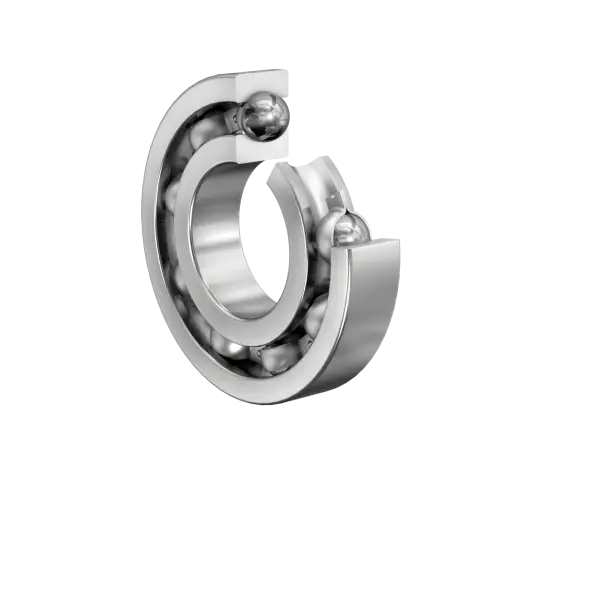

Deep groove ball bearing 63..-G, single row, generator bearing, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
380 mm
Outside diameter
B
75 mm
Width
Cr
350,000 N
Basic dynamic load rating, radial
C0r
465,000 N
Basic static load rating, radial
Cur
14,500 N
Fatigue load limit, radial
CG
2,390 1/min
Limiting speed
nϑr
2,400 1/min
Reference speed
≈m
38.2 kg
Weight
Mounting dimensions
da min
197 mm
Minimum diameter shaft shoulder
da min
363 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius
