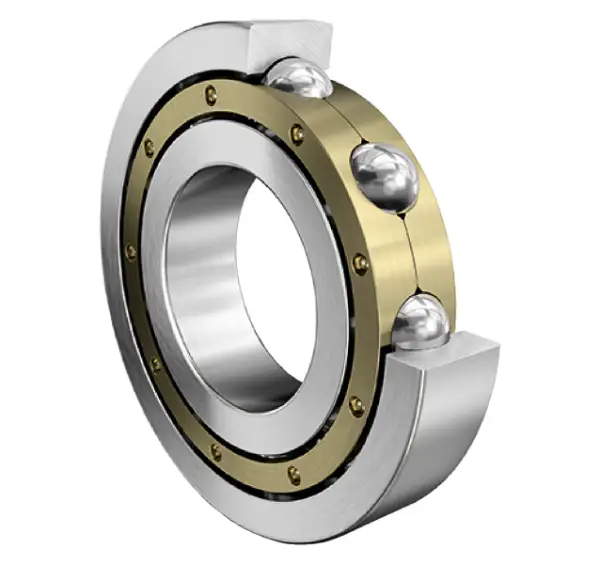

FAG 6352-M
Deep groove ball bearing 63..-M, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
260 mm
Bore diameter
D
540 mm
Outside diameter
B
102 mm
Width
Cr
520,000 N
Basic dynamic load rating, radial
C0r
720,000 N
Basic static load rating, radial
Cur
25,500 N
Fatigue load limit, radial
CG
2,080 1/min
Limiting speed
nϑr
1,650 1/min
Reference speed
≈m
115 kg
Weight
Mounting dimensions
da min
265.6 mm
Minimum diameter shaft shoulder
da min
534.4 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum fillet radius
