FAG 686-2RSR-CO7

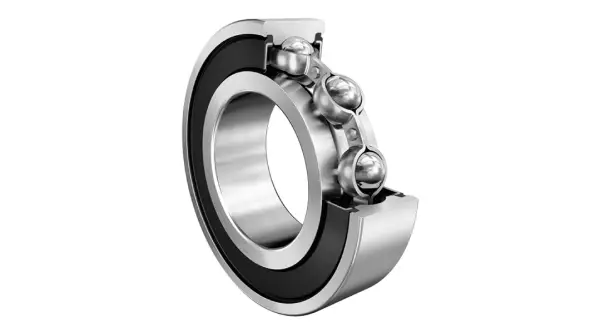

Deep groove ball bearing 68..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

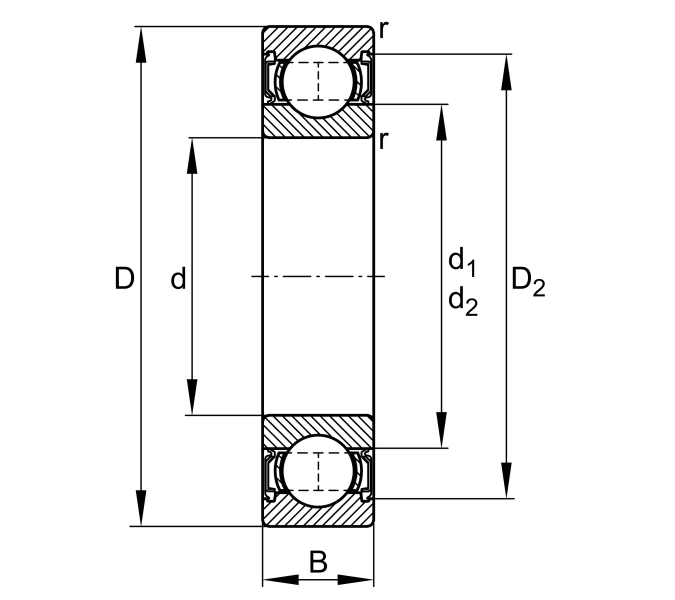

Main Dimensions & Performance Data
d
6 mm
Bore diameter
D
13 mm
Outside diameter
B
5 mm
Width
Cr
1,080 N
Basic dynamic load rating, radial
C0r
430 N
Basic static load rating, radial
Cur
27 N
Fatigue load limit, radial
CG
34,000 1/min
Limiting speed
≈m
2.68 g
Weight
Mounting dimensions
da min
6.8 mm
Minimum diameter shaft shoulder
da min
12.2 mm
Maximum diameter of housing shoulder
ra max
0.15 mm
Maximum fillet radius
