FAG 7026-XL-MP
Angular Contact Ball Bearings

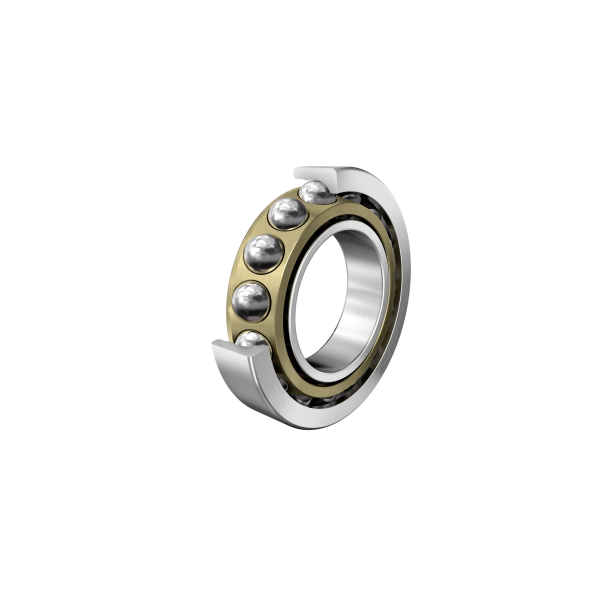

Angular contact ball bearing 70..-XL-MP, single row, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
33 mm
Width
Cr
131,000 N
Basic dynamic load rating, radial
C0r
142,000 N
Basic static load rating, radial
Cur
7,700 N
Fatigue load limit, radial
nG
5,500 1/min
Limiting speed
nϑr
3,450 1/min
Reference speed
≈m
4.07 kg
Weight
Mounting dimensions
da min
138.8 mm
Minimum diameter of shaft shoulder
Da max
191.2 mm
Maximum diameter of housing shoulder
Db max
195.4 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
