FAG 7056-MP
Angular Contact Ball Bearings

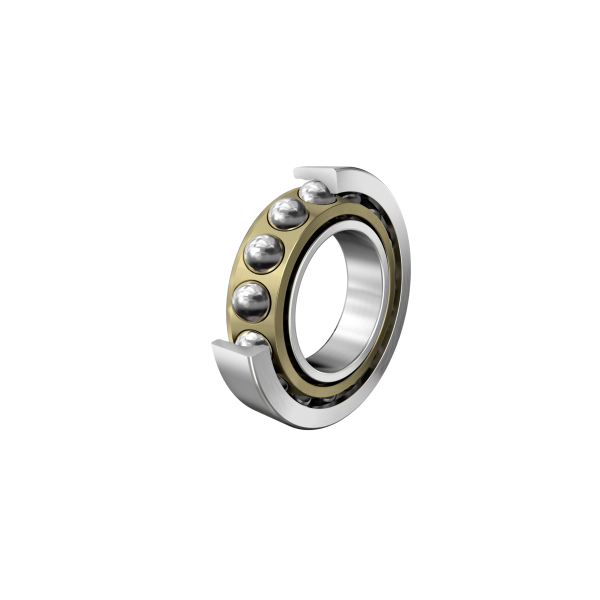

Angular contact ball bearing 70..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
280 mm
Bore diameter
D
420 mm
Outside diameter
B
65 mm
Width
Cr
375,000 N
Basic dynamic load rating, radial
C0r
630,000 N
Basic static load rating, radial
Cur
17,700 N
Fatigue load limit, radial
nG
2,230 1/min
Limiting speed
nϑr
1,520 1/min
Reference speed
≈m
32.5 kg
Weight
Mounting dimensions
da min
294.6 mm
Minimum diameter of shaft shoulder
Da max
405.4 mm
Maximum diameter of housing shoulder
Db max
413 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum fillet radius of shaft
ra1 max
1.5 mm
Maximum fillet radius of housing
