FAG 708/600-MP
Angular Contact Ball Bearings

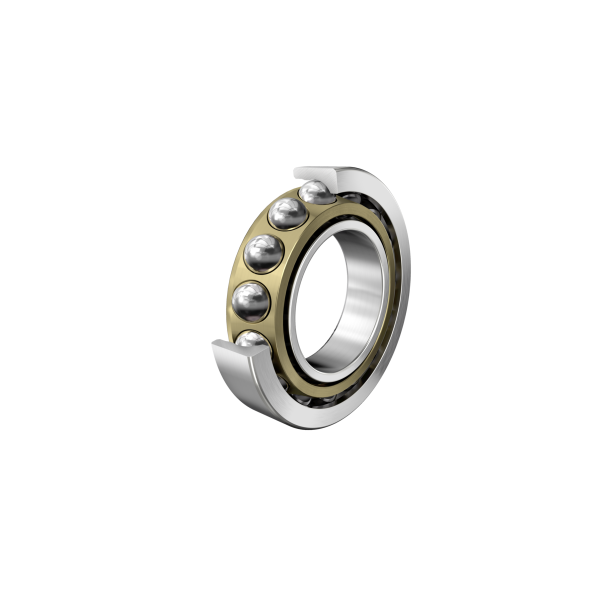

Angular contact ball bearing 708..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

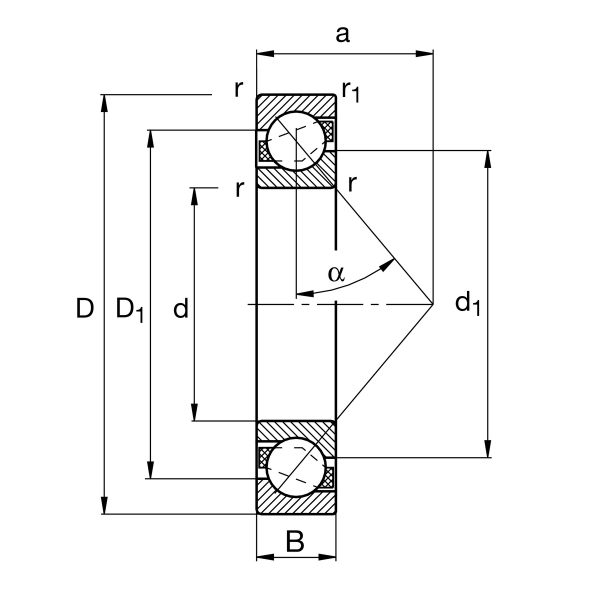

Main Dimensions & Performance Data
d
600 mm
Bore diameter
D
730 mm
Outside diameter
B
42 mm
Width
Cr
330,000 N
Basic dynamic load rating, radial
C0r
830,000 N
Basic static load rating, radial
Cur
16,700 N
Fatigue load limit, radial
nG
1,230 1/min
Limiting speed
nϑr
560 1/min
Reference speed
≈m
38 kg
Weight

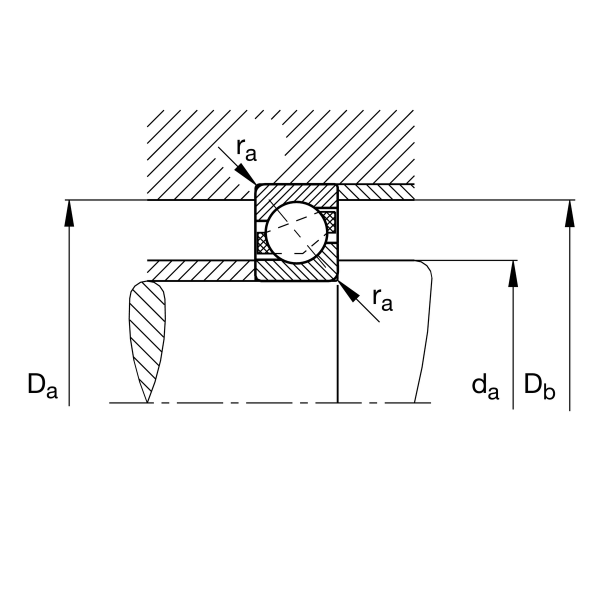

Mounting dimensions
da min
612.4 mm
Minimum diameter of shaft shoulder
Da max
717.6 mm
Maximum diameter of housing shoulder
Db max
724 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
