FAG 708/900-MPB
Angular Contact Ball Bearings
Angular contact ball bearing708..-MPB, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

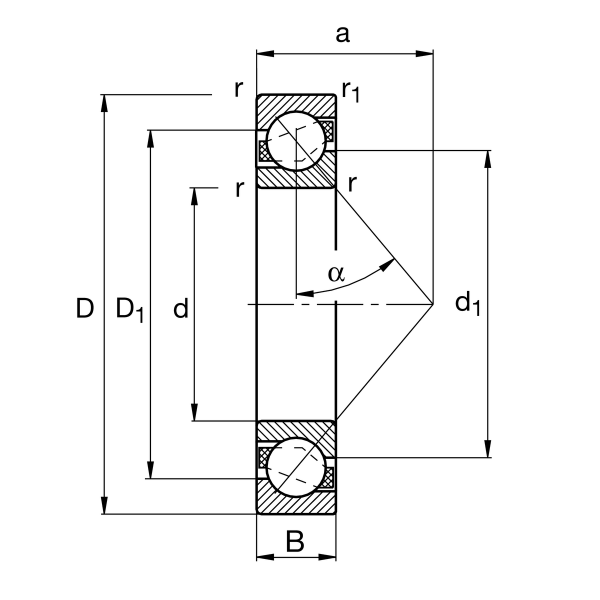

Main Dimensions & Performance Data
d
900 mm
Bore diameter
D
1,090 mm
Outside diameter
B
60 mm
Width
Cr
540,000 N
Basic dynamic load rating, radial
C0r
1,680,000 N
Basic static load rating, radial
Cur
28,000 N
Fatigue load limit, radial
nG
790 1/min
Limiting speed
nϑr
350 1/min
Reference speed
≈m
123 kg
Weight

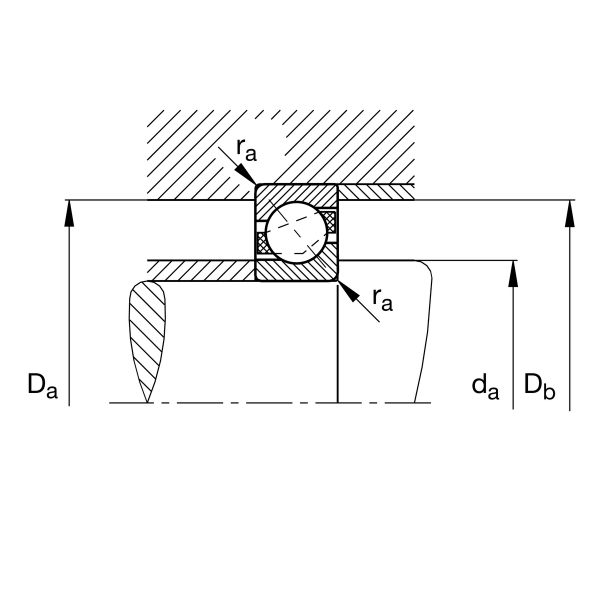

Mounting dimensions
da min
918 mm
Minimum diameter of shaft shoulder
Da max
1,072 mm
Maximum diameter of housing shoulder
Db max
1,081.2 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius of shaft
ra1 max
2 mm
Maximum fillet radius of housing
