FAG 7088-MP
Angular Contact Ball Bearings

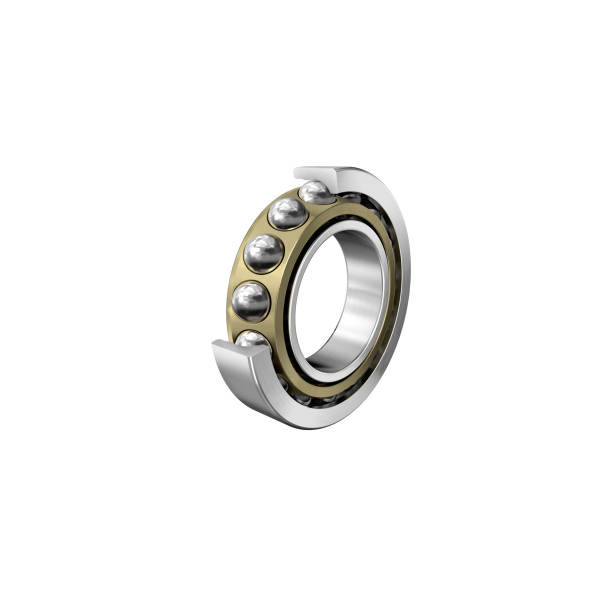

Angular contact ball bearing 70..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
440 mm
Bore diameter
D
650 mm
Outside diameter
B
94 mm
Width
Cr
660,000 N
Basic dynamic load rating, radial
C0r
1,460,000 N
Basic static load rating, radial
Cur
32,500 N
Fatigue load limit, radial
nG
1,390 1/min
Limiting speed
nϑr
860 1/min
Reference speed
≈m
100 kg
Weight
Mounting dimensions
da min
463 mm
Minimum diameter of shaft shoulder
Da max
627 mm
Maximum diameter of housing shoulder
Db max
637.6 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum fillet radius of shaft
ra1 max
2.5 mm
Maximum fillet radius of housing
