FAG 718/500-MP-P5
Angular Contact Ball Bearings

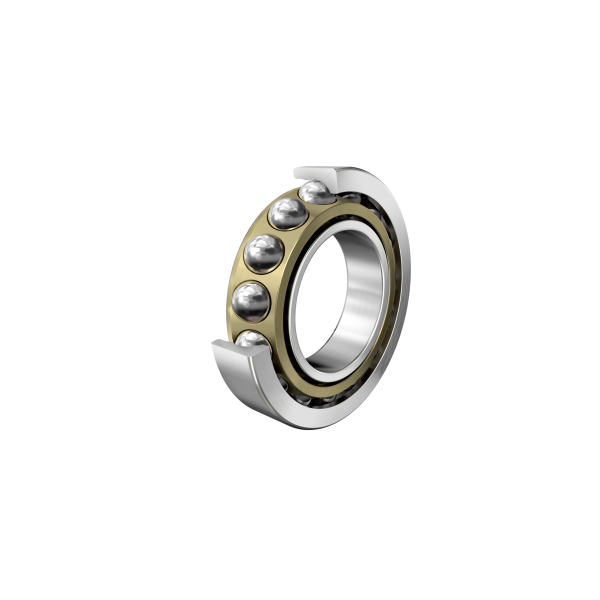

Angular contact ball bearing 718..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
500 mm
Bore diameter
D
620 mm
Outside diameter
B
56 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
790,000 N
Basic static load rating, radial
Cur
19,700 N
Fatigue load limit, radial
nG
1,440 1/min
Limiting speed
nϑr
790 1/min
Reference speed
≈m
35.1 kg
Weight
Mounting dimensions
da min
512.4 mm
Minimum diameter of shaft shoulder
Da max
607.6 mm
Maximum diameter of housing shoulder
Db max
614 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
