FAG 718/560-MP-P5-UA
Angular Contact Ball Bearings

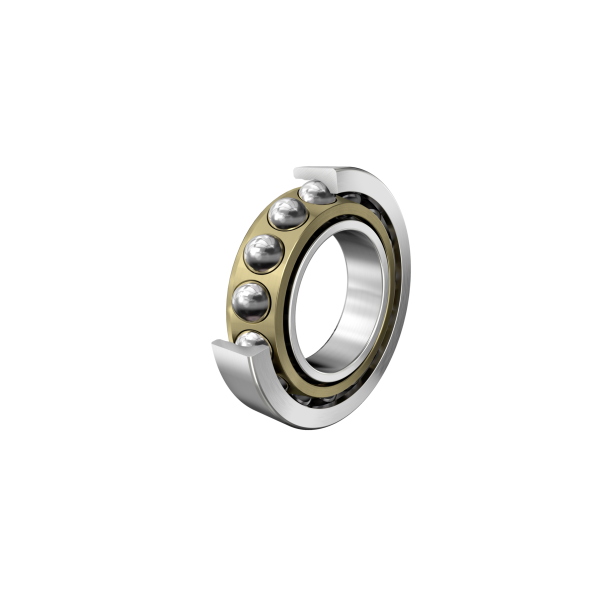

Angular contact ball bearing 718..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
560 mm
Bore diameter
D
680 mm
Outside diameter
B
56 mm
Width
Cr
410,000 N
Basic dynamic load rating, radial
C0r
870,000 N
Basic static load rating, radial
Cur
20,700 N
Fatigue load limit, radial
nG
1,300 1/min
Limiting speed
nϑr
690 1/min
Reference speed
≈m
40.2 kg
Weight
Mounting dimensions
da min
572.4 mm
Minimum diameter of shaft shoulder
Da max
667.6 mm
Maximum diameter of housing shoulder
Db max
674 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
