FAG 718/950-MPB-P5-UM
Angular Contact Ball Bearings

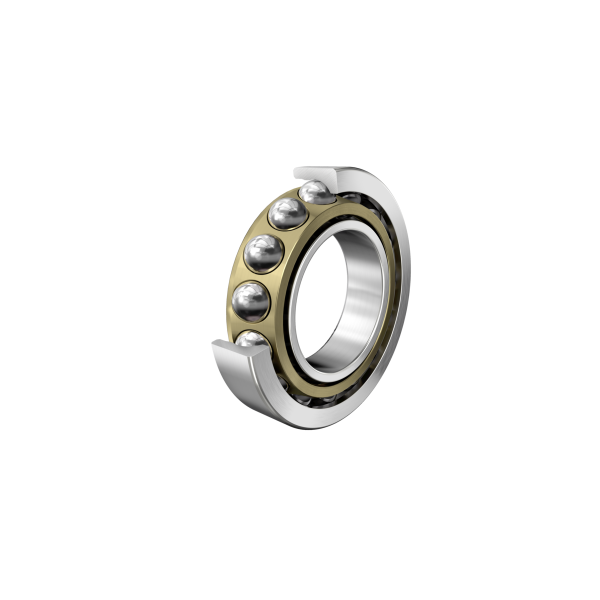

Angular contact ball bearing 718..-MPB, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
950 mm
Bore diameter
D
1,150 mm
Outside diameter
B
90 mm
Width
Cr
830,000 N
Basic dynamic load rating, radial
C0r
2,430,000 N
Basic static load rating, radial
Cur
43,000 N
Fatigue load limit, radial
nG
740 1/min
Limiting speed
nϑr
360 1/min
Reference speed
≈m
189 kg
Weight
Mounting dimensions
da min
968 mm
Minimum diameter of shaft shoulder
Da max
1,132 mm
Maximum diameter of housing shoulder
Db max
1,141.2 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius of shaft
ra1 max
2 mm
Maximum fillet radius of housing
