FAG 719/530-MP-P5-UO
Angular Contact Ball Bearings

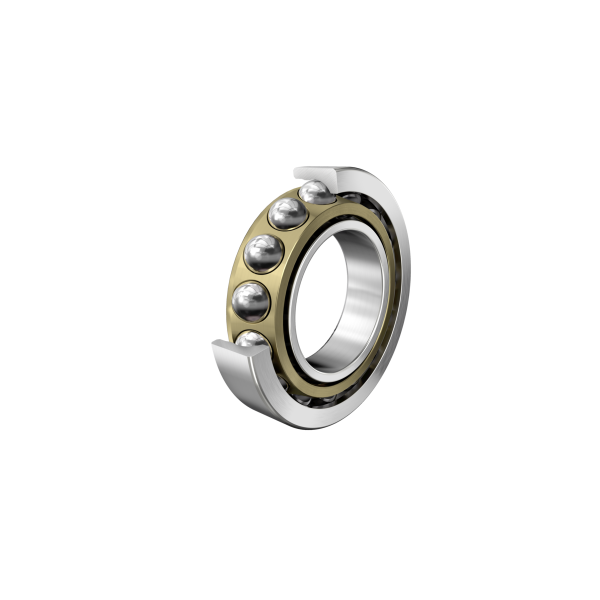

Angular contact ball bearing 719..-MP, single row, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
530 mm
Bore diameter
D
710 mm
Outside diameter
B
82 mm
Width
Cr
610,000 N
Basic dynamic load rating, radial
C0r
1,350,000 N
Basic static load rating, radial
Cur
32,000 N
Fatigue load limit, radial
nG
1,250 1/min
Limiting speed
nϑr
730 1/min
Reference speed
≈m
87 kg
Weight
Mounting dimensions
da min
548 mm
Minimum diameter of shaft shoulder
Da max
692 mm
Maximum diameter of housing shoulder
Db max
701.2 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius of shaft
ra1 max
2 mm
Maximum fillet radius of housing
