FAG 7202-B-XL-JP-UO
Angular Contact Ball Bearings

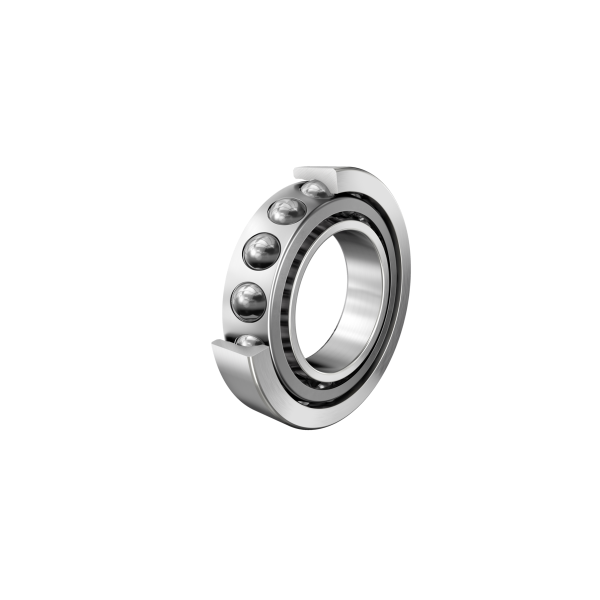

Angular contact ball bearing 72..-B-XL-JP, single row, X-life, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
35 mm
Outside diameter
B
11 mm
Width
Cr
8,900 N
Basic dynamic load rating, radial
C0r
4,450 N
Basic static load rating, radial
Cur
305 N
Fatigue load limit, radial
nG
29,500 1/min
Limiting speed
nϑr
19,100 1/min
Reference speed
≈m
0.046 kg
Weight
Mounting dimensions
da min
19.2 mm
Minimum diameter of shaft shoulder
Da max
30.8 mm
Maximum diameter of housing shoulder
Db max
32.6 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius of shaft
ra1 max
0.3 mm
Maximum fillet radius of housing
