FAG 7206-B-XL-2RS-TVP-UL
Angular Contact Ball Bearings

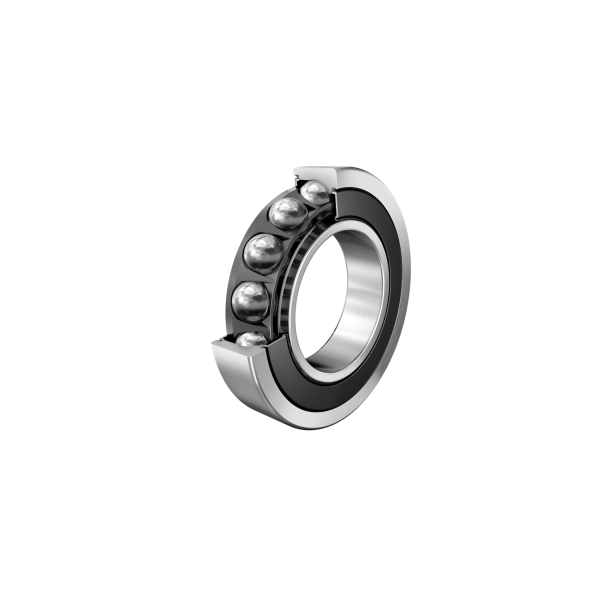

Angular contact ball bearing 72..-B-XL-2RS-TVP, single row, X-life, seals, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

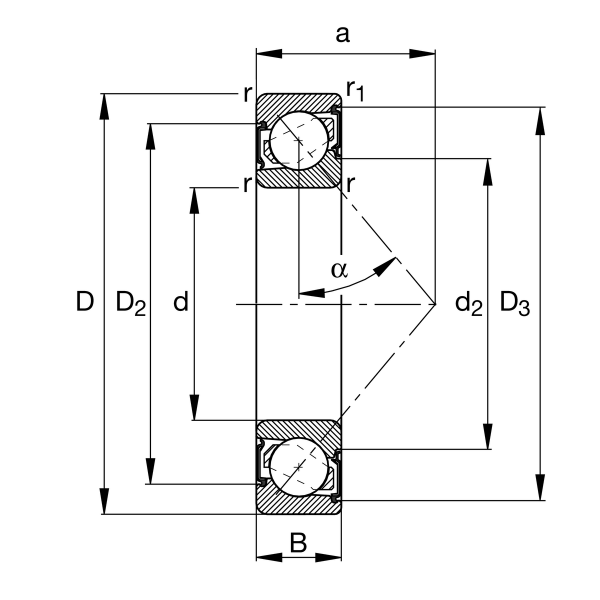

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
16 mm
Width
Cr
23,100 N
Basic dynamic load rating, radial
C0r
14,100 N
Basic static load rating, radial
Cur
980 N
Fatigue load limit, radial
nG
6,500 1/min
Limiting speed
≈m
0.208 kg
Weight
Mounting dimensions
da min
35.6 mm
Minimum diameter of shaft shoulder
Da max
56.4 mm
Maximum diameter of housing shoulder
Db max
57.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
