FAG 7215-B-XL-TVP-UO

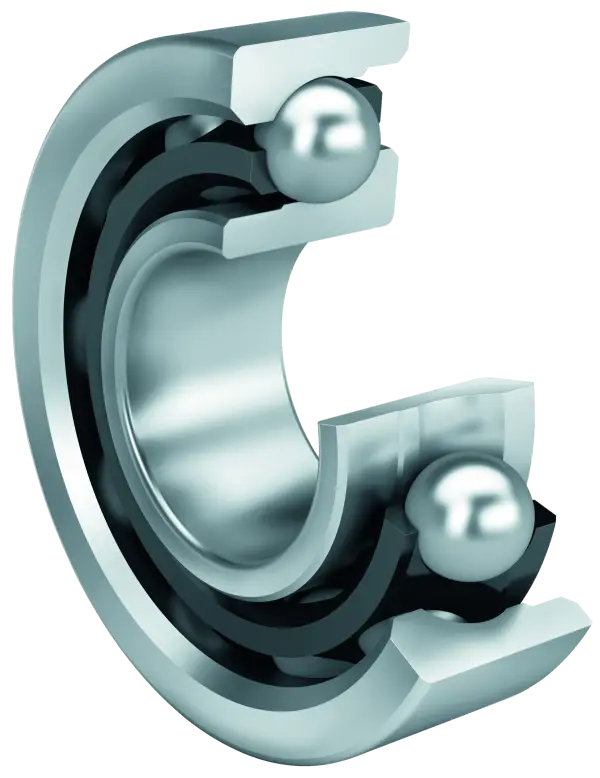

Angular contact ball bearing 72..-B-XL-TVP, single row, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
130 mm
Outside diameter
B
25 mm
Width
Cr
73,000 N
Basic dynamic load rating, radial
C0r
62,000 N
Basic static load rating, radial
Cur
4,250 N
Fatigue load limit, radial
nG
6,900 1/min
Limiting speed
nϑr
5,300 1/min
Reference speed
≈m
1.17 kg
Weight
Mounting dimensions
da min
84 mm
Minimum diameter of shaft shoulder
Da max
121 mm
Maximum diameter of housing shoulder
Db max
124.4 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius of shaft
ra1 max
1 mm
Maximum fillet radius of housing
