FAG 7301-B-XL-JP-UA
Angular Contact Ball Bearings

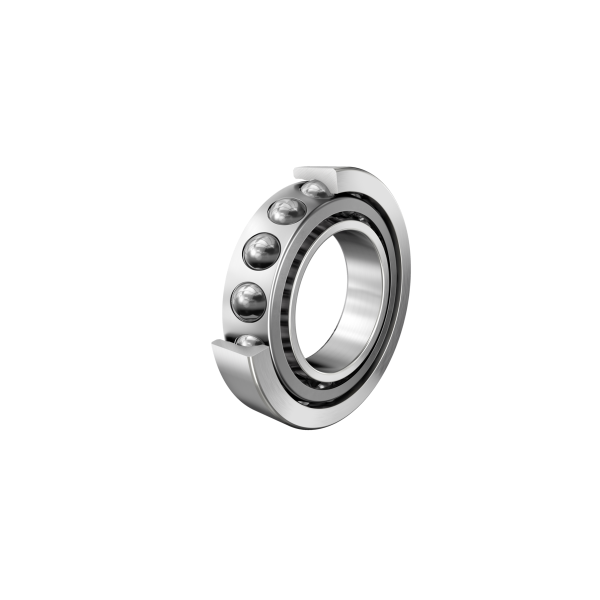

Angular contact ball bearing 73..-B-XL-JP, single row, X-life, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
37 mm
Outside diameter
B
12 mm
Width
Cr
12,200 N
Basic dynamic load rating, radial
C0r
5,300 N
Basic static load rating, radial
Cur
365 N
Fatigue load limit, radial
nG
28,000 1/min
Limiting speed
nϑr
16,300 1/min
Reference speed
≈m
0.062 kg
Weight
Mounting dimensions
da min
17.6 mm
Minimum diameter of shaft shoulder
Da max
31.4 mm
Maximum diameter of housing shoulder
Db max
32.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
