FAG 7302-B-XL-MP
Angular Contact Ball Bearings

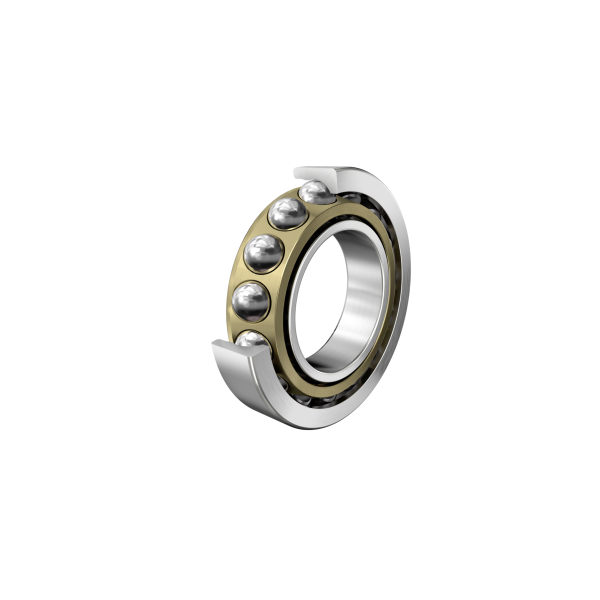

Angular contact ball bearing 73..-B-XL-MP, single row, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
42 mm
Outside diameter
B
13 mm
Width
Cr
13,900 N
Basic dynamic load rating, radial
C0r
6,400 N
Basic static load rating, radial
Cur
440 N
Fatigue load limit, radial
nG
32,000 1/min
Limiting speed
nϑr
14,300 1/min
Reference speed
≈m
0.089 kg
Weight
Mounting dimensions
da min
20.6 mm
Minimum diameter of shaft shoulder
Da max
36.4 mm
Maximum diameter of housing shoulder
Db max
37.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
