FAG 7303-B-XL-JP
Angular Contact Ball Bearings

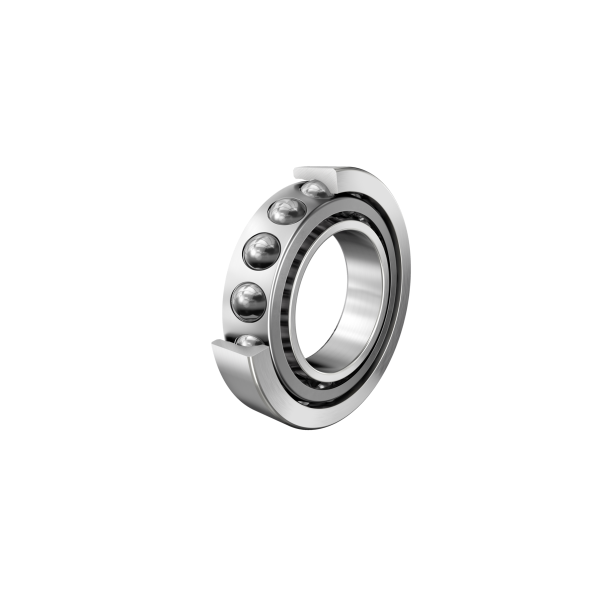

Angular contact ball bearing 73..-B-XL-JP, single row, X-life, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
B
14 mm
Width
Cr
18,700 N
Basic dynamic load rating, radial
C0r
9,000 N
Basic static load rating, radial
Cur
620 N
Fatigue load limit, radial
nG
21,600 1/min
Limiting speed
nϑr
12,800 1/min
Reference speed
≈m
114 g
Weight
Mounting dimensions
da min
22.6 mm
Minimum diameter of shaft shoulder
Da max
41.4 mm
Maximum diameter of housing shoulder
Db max
42.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
