FAG 7304-B-XL-MP
Angular Contact Ball Bearings

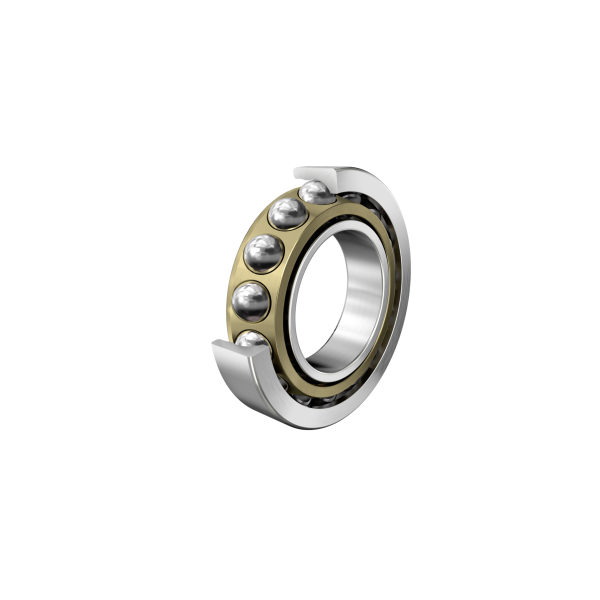

Angular contact ball bearing 73..-B-XL-MP, single row, X-life, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
20,200 N
Basic dynamic load rating, radial
C0r
10,000 N
Basic static load rating, radial
Cur
700 N
Fatigue load limit, radial
nG
25,000 1/min
Limiting speed
nϑr
11,700 1/min
Reference speed
≈m
0.165 kg
Weight
Mounting dimensions
da min
27 mm
Minimum diameter of shaft shoulder
Da max
45 mm
Maximum diameter of housing shoulder
Db max
47.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
