FAG 7305-B-XL-TVP
Angular Contact Ball Bearings

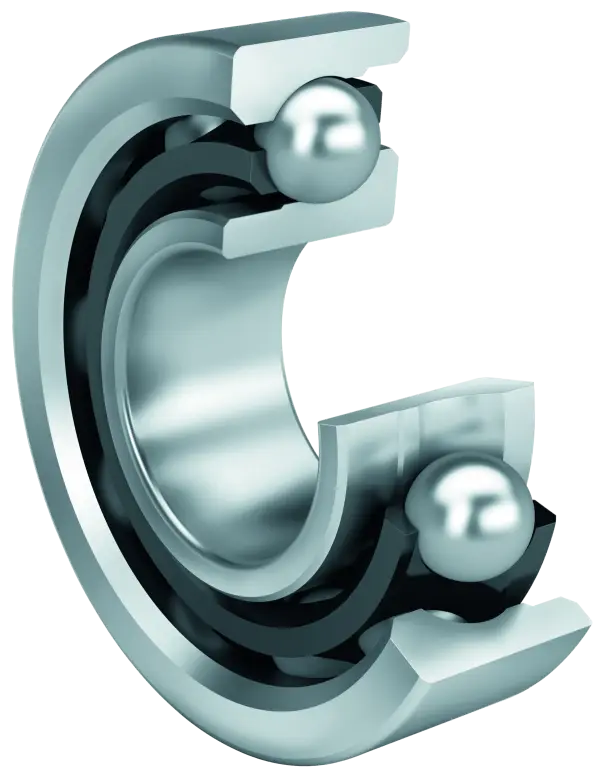

Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
B
17 mm
Width
Cr
30,000 N
Basic dynamic load rating, radial
C0r
15,800 N
Basic static load rating, radial
Cur
1,100 N
Fatigue load limit, radial
nG
15,800 1/min
Limiting speed
nϑr
9,800 1/min
Reference speed
≈m
0.22 kg
Weight
Mounting dimensions
da min
32 mm
Minimum diameter of shaft shoulder
Da max
55 mm
Maximum diameter of housing shoulder
Db max
57.8 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius of shaft
ra1 max
0.6 mm
Maximum fillet radius of housing
