FAG AH240/710-H
Withdrawal Sleeves
Withdrawal sleeve AH..-H, accessory rolling bearing, hydraulic, finished part
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

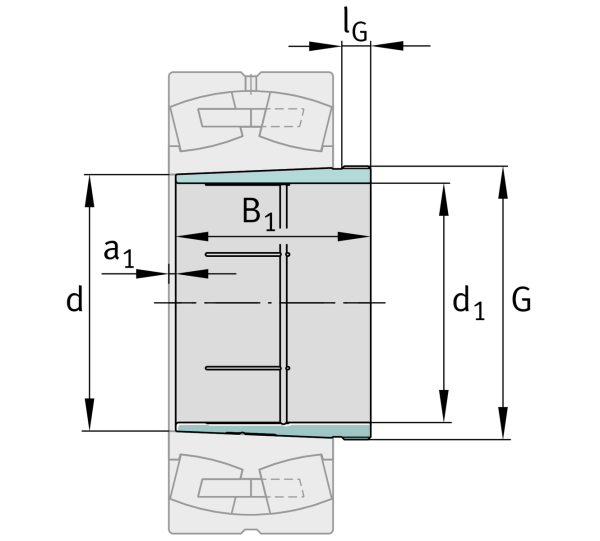

Main Dimensions & Performance Data
d1
670 mm
Bore diameter
G
Tr740X7
Thread
B1
365 mm
Sleeve length
≈m
153.7 kg
Weight

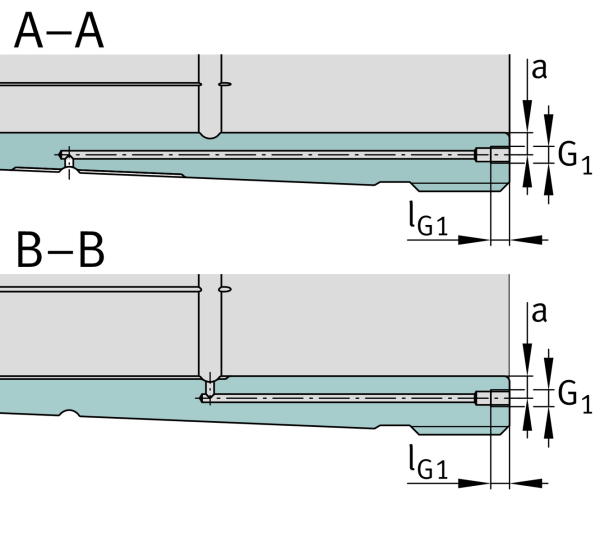

Mounting dimensions
G1
G1/4
Thread oil connector
a
15 mm
Distance oil connector
IG1
15 mm
Thread depth oil connector
