FAG B7022-C-T-P4S-UL
Spindle bearing B70..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

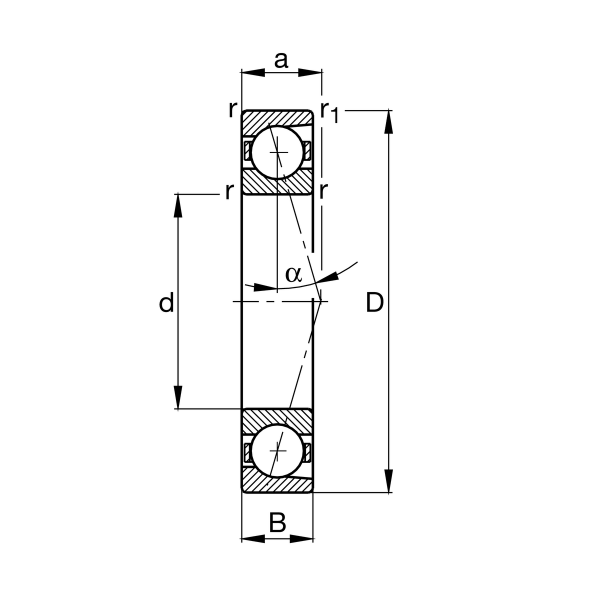

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
28 mm
Width
Cr
112,000 N
Basic dynamic load rating, radial
C0r
77,000 N
Basic static load rating, radial
Cur
6,900 N
Fatigue load limit, radial
nG Grease
8,000 1/min
Limiting speed for grease lubrication
nG Oil
12,000 1/min
Limiting speed for oil lubrication
≈m
1.982 kg
Weight

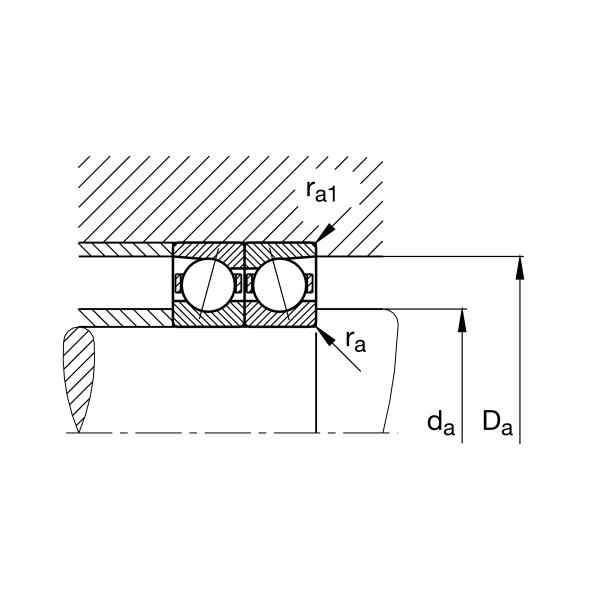

Mounting dimensions
da
121 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
159 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius

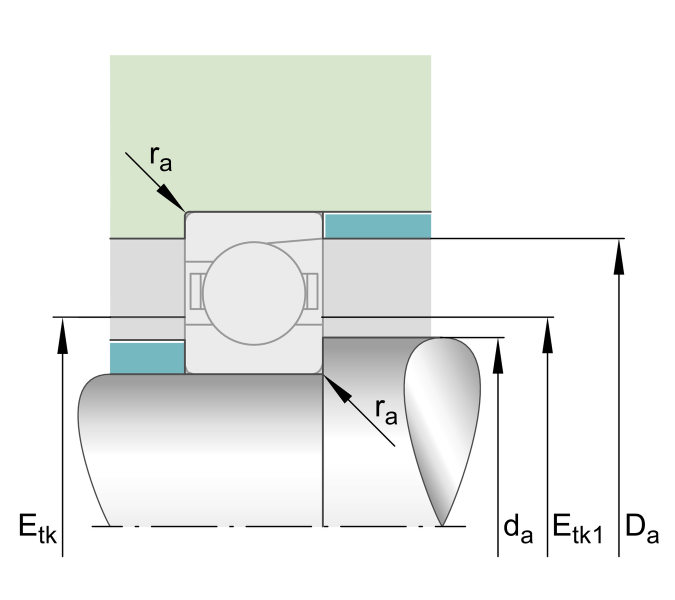

Etk min
128.6 mm
Minimum diameter injection pitch
Etk max
135.1 mm
Maximum diameter injection pitch
Etk1 min
128.6 mm
Minimum diameter injection pitch
Etk1 max
135.1 mm
Maximum diameter injection pitch
a
32.8 mm
Distance between the apexes of the pressure cones
