FAG B7240-C-T-P4S-UL
Radial Super Precision Bearings
Spindle bearing B72..-C, adjusted, in pairs or sets, contact angle u03B1 = 15u00B0, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

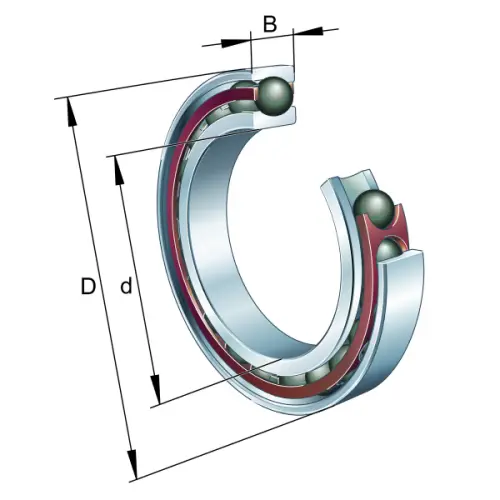

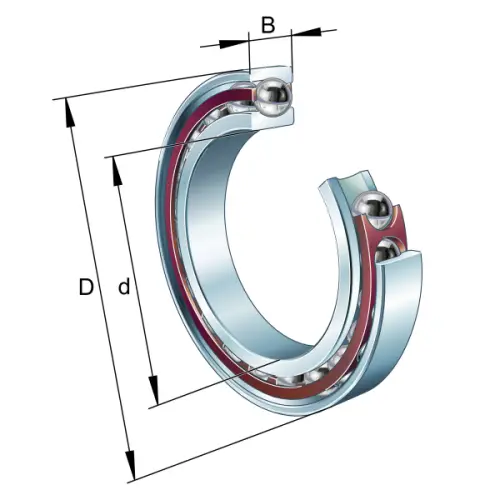

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
360 mm
Outside diameter
B
58 mm
Width
Cr
330,000 N
Basic dynamic load rating, radial
C0r
310,000 N
Basic static load rating, radial
Cur
19,500 N
Fatigue load limit, radial
nG Grease
3,200 1/min
Limiting speed for grease lubrication
nG Oil
4,800 1/min
Limiting speed for oil lubrication
≈m
24.2 kg
Weight

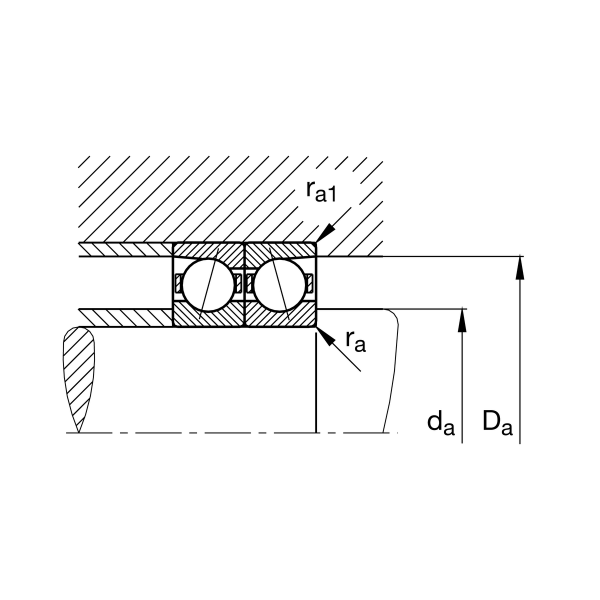

Mounting dimensions
da
238.5 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
321.5 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
3 mm
Maximum recess radius
ra1 max
3 mm
Maximum recess radius
Etk min
257.1 mm
Minimum diameter injection pitch
Etk max
270.1 mm
Maximum diameter injection pitch
Etk1 min
257.1 mm
Minimum diameter injection pitch
Etk1 max
270.1 mm
Maximum diameter injection pitch
a
66.5 mm
Distance between the apexes of the pressure cones
