FAG B7024-E-T-P4S-UL
Spindle bearing B70..-E, adjusted, in pairs or sets, contact angle u03B1 = 25u00B0, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

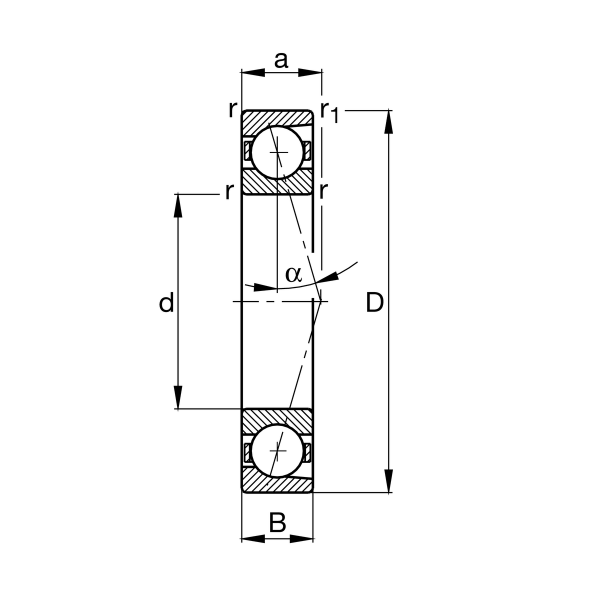

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
180 mm
Outside diameter
B
28 mm
Width
Cr
109,000 N
Basic dynamic load rating, radial
C0r
78,000 N
Basic static load rating, radial
Cur
6,700 N
Fatigue load limit, radial
nG Grease
6,700 1/min
Limiting speed for grease lubrication
nG Oil
10,000 1/min
Limiting speed for oil lubrication
≈m
2.07 kg
Weight

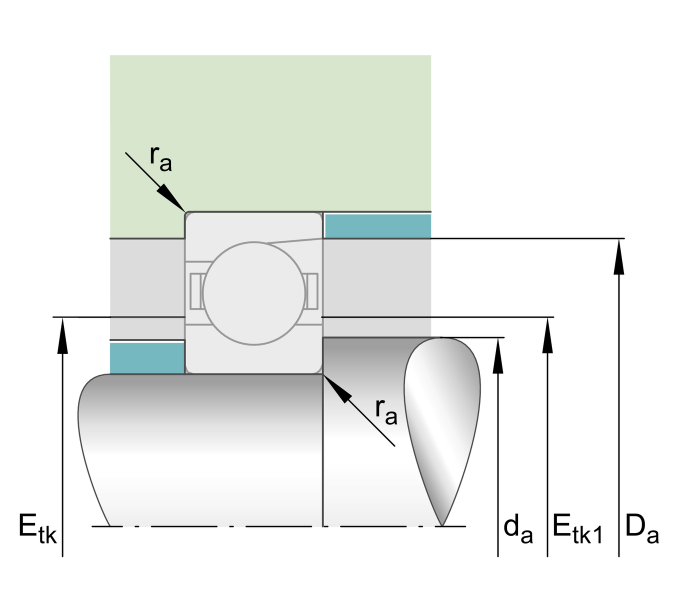

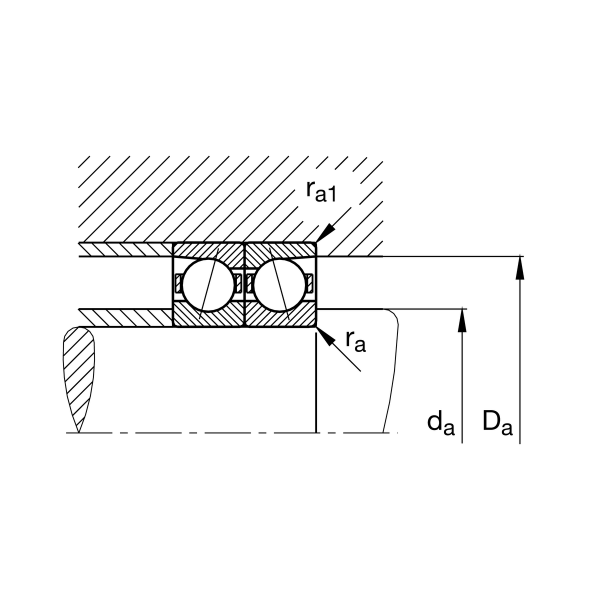

Mounting dimensions
da
131 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
169 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
2 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
Etk min
138.6 mm
Minimum diameter injection pitch
Etk max
145.1 mm
Maximum diameter injection pitch
Etk1 min
138.6 mm
Minimum diameter injection pitch
Etk1 max
145.1 mm
Maximum diameter injection pitch
a
49 mm
Distance between the apexes of the pressure cones
