FAG HC61805-2RSR>N

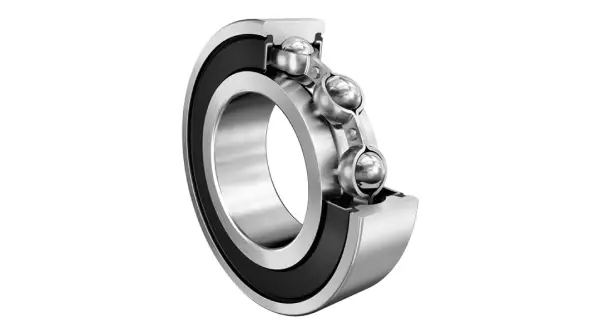

Deep groove ball bearing HC618..-2RSR, Hybrid bearing, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

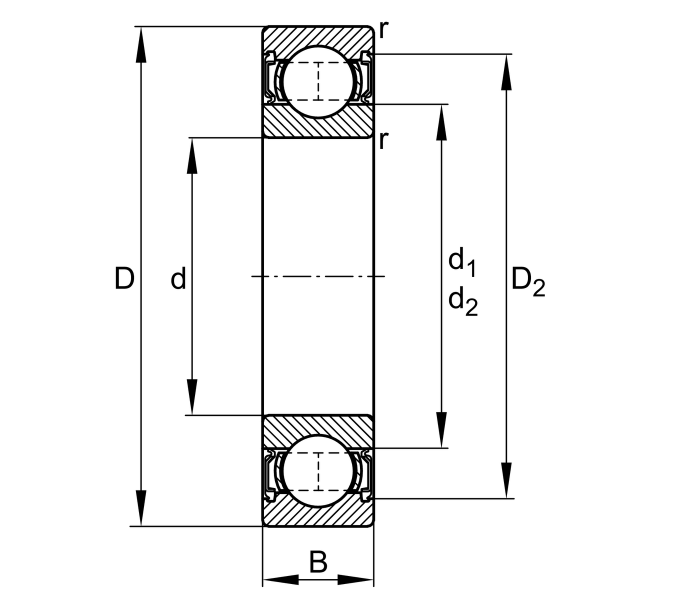

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
37 mm
Outside diameter
B
7 mm
Width
Cr
3,800 N
Basic dynamic load rating, radial
C0r
2,550 N
Basic static load rating, radial
Cur
102 N
Fatigue load limit, radial
CG
9,600 1/min
Limiting speed
≈m
0.022 kg
Weight
Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
da min
35 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
